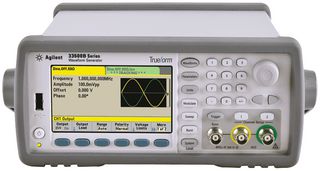

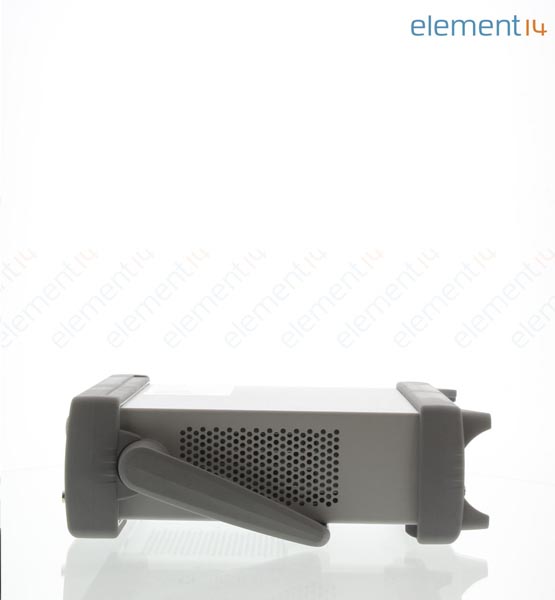

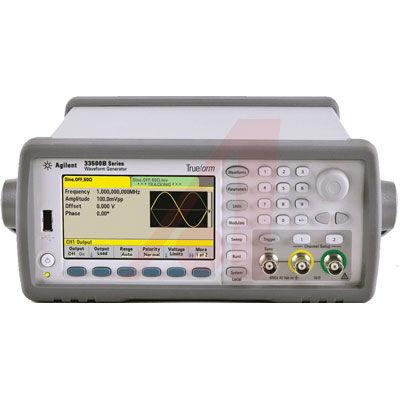

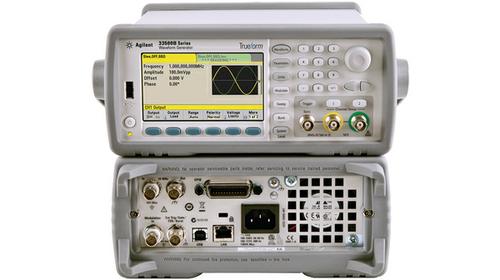

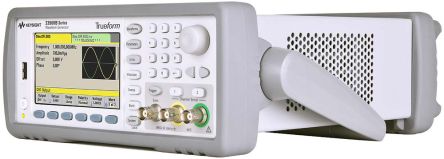

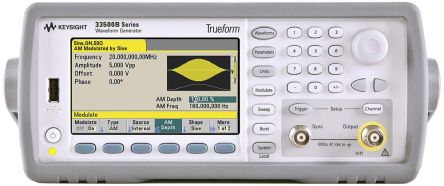

33520B

Keysight 33500B 系列波形发生器Keysight 33500B 系列波形发生器包含 Trueform 信号生成技术，这是直接数字合成 DDS 与逐点架构的最佳组合。 它以仅与 DDS 相关的价格提供增强的性能。 33500B 型号提供比同类备选仪器更低的抖动和谐波失真。 抖动性能使用户能够更准确地放置边缘，有助于减少电路设计中的计时误差。 总谐波失真少于 0.04% 和非谐波杂散抑制小于75dBc。 这意味着未引入噪声的清晰信号为用户提供更高的精确度。 抖动率以及 8.4ns 上升和下降次数，使用户可以更准确地设置触发点。 33500B 型号的 16 位分辨率有助于输出降低至 1uV，使用户能够测试低电压电路与设计。波形相加与结合能力 可变带宽噪声 波形序列 伪随机二进制序列图案生成 ### 任意波形发生器

The 33500B Series waveform generators offer the common signals and features you expect, such as modulation, sweep, and burst. But the 33500B Series offers many more features that give you the capabilities and fl exibility you need to get your job done. Like an intuitive front-panel user interface that makes it easy to quickly relearn it when you"ve been focused elsewhere. Like built-in LAN, USB and GPIB interfaces that make it easy to control your instruments or transfer your waveforms to your instrument.

.

30 MHz, 2-channel

.

Set leading and trailing edge times independently

.

Dual channel coupling, frequency and amplitude, equal and inverted

.

Set start phase for each channel, set phase shift between channels

.

Sum two signals together, frequency and amplitude independent 2-tone, square-sine, noise on pulse

.

Lowest voltage range at 1 mVpp, a 10x improvement

.

Set high and low voltage limits to prevent overload on DUT

.

Provides standard PRBS patterns, PN7 … PN23

.

Select PN type, set bit rate, set edge time
