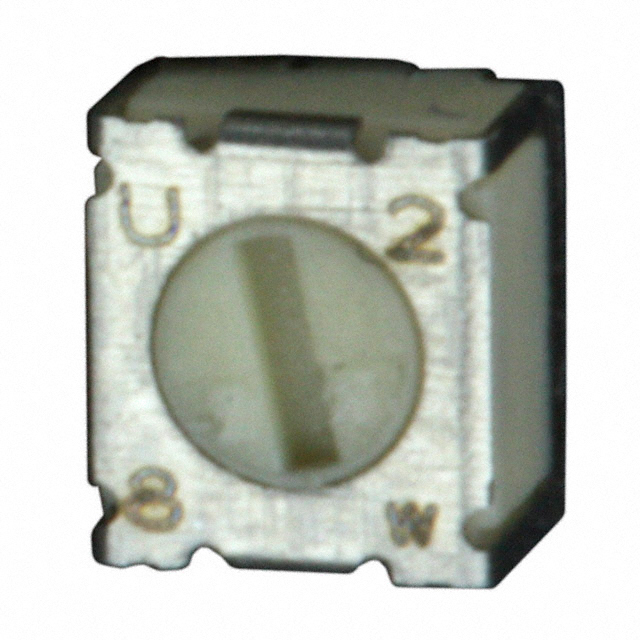

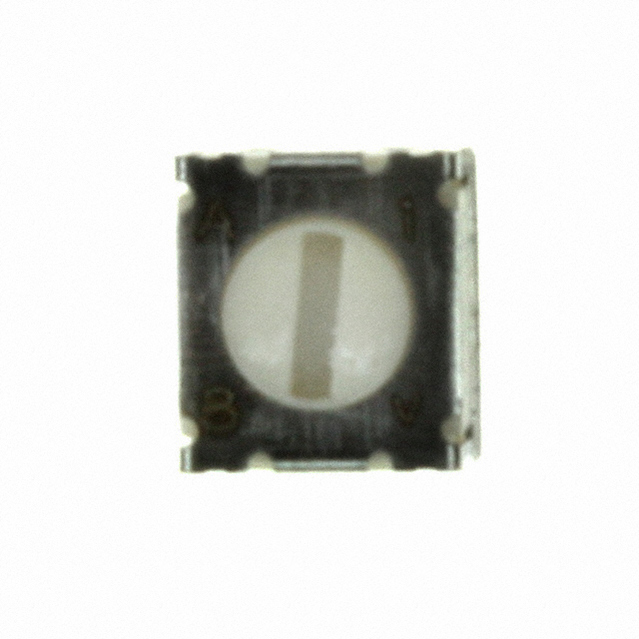

BOURNS 3312J-1-100E 微调电位器, 10R, 2X2mm, 0.1W, 20%
Calibrate the resistance of a circuit with this potentiometer from Bourns. This product has a resistance value of 10 Ohm. This part has a power rating of 0.1 1/10 W. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device utilizes cermet technology. The 3312J-1-100E part has a j-hook termination style. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 20%. This product is 2.5 mm long, 1.7 mm tall and 2.8 mm deep.
额定电压DC 500 V
绝缘电阻 500 MΩ
容差 ±20 %
额定功率 0.1 W
电阻 10 Ω
阻值偏差 ±20 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 500 V
安装方式 Surface Mount
封装 Square - 0.110" L x 0.098" W x 0.059" H 2.80mm x 2.50mm x 1.50mm
长度 2.5 mm
宽度 2.8 mm
高度 1.7 mm
封装 Square - 0.110" L x 0.098" W x 0.059" H 2.80mm x 2.50mm x 1.50mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active

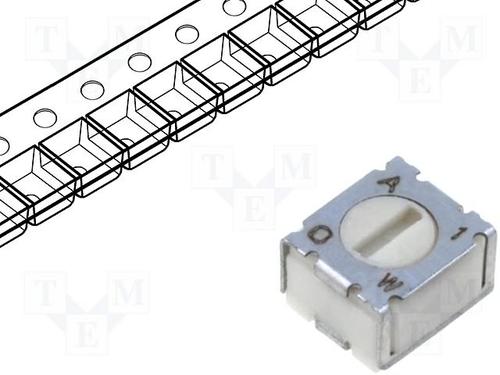

包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
