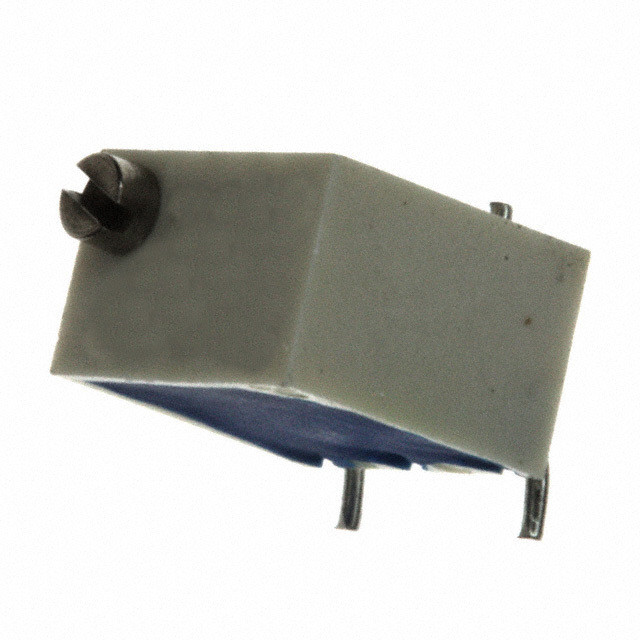

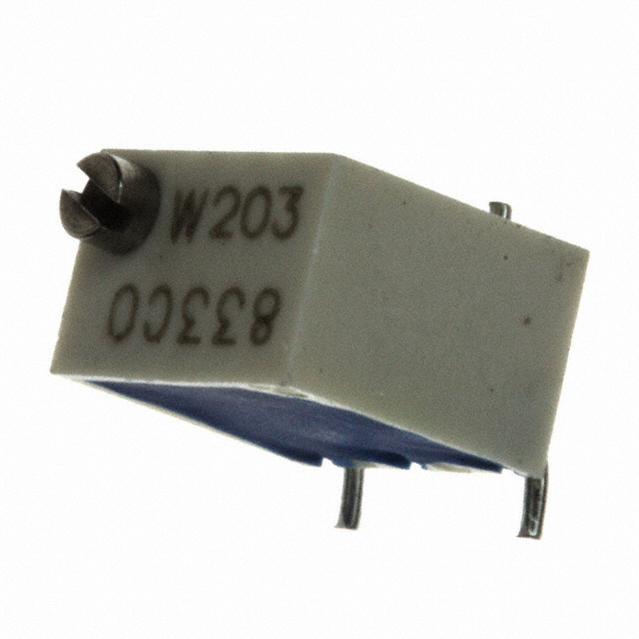

BOURNS 3269W-1-203GLF 微调电位器, 20KΩ, 12转, 10%, SMD
Infrequently adjust the resistor value for your circuit with this potentiometer from Bourns. This product has a resistance value of 20K Ohm. This part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 6.35 mm long, 8.46 mm tall and 6.36 mm deep. It has a tolerance of 10%. This device utilizes cermet technology. This part has an operating temperature of -65 to 150 °C. The 3269W-1-203GLF part has a gull wing termination style.
容差 ±10 %
额定功率 250 mW
电阻 20 kΩ
阻值偏差 ±10 %
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
封装 Square - 0.250" L x 0.170" W x 0.293" H 6.35mm x 4.32mm x 7.44mm
长度 6.35 mm
宽度 6.36 mm
高度 8.46 mm
封装 Square - 0.250" L x 0.170" W x 0.293" H 6.35mm x 4.32mm x 7.44mm
工作温度 -65℃ ~ 150℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
