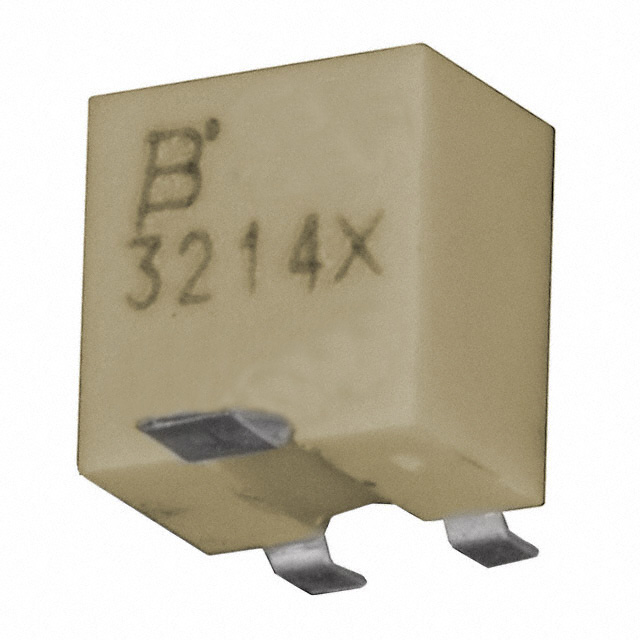

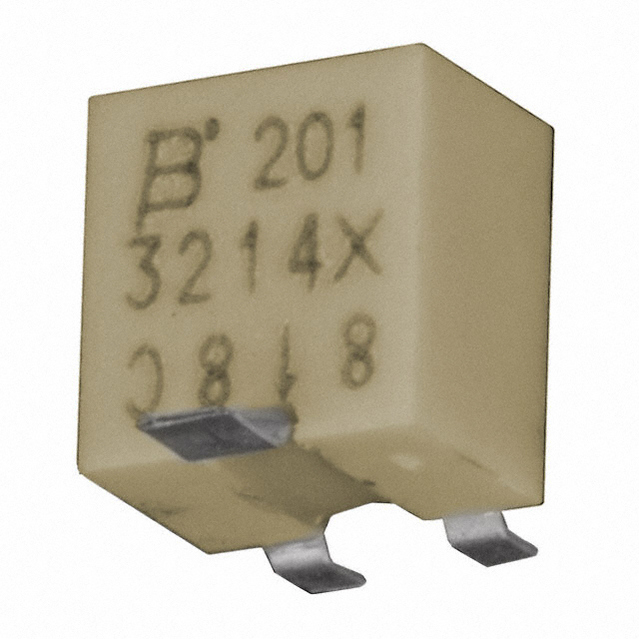

3214X-1-202E

BOURNS  3214X-1-202E  微调电位器, 2KΩ, 5转, 10%, SMD

Res Cermet Trimmer 2K Ohm 10% 0.25W1/4W 5ElecTurns 1.5mm 4.8 X 5.7 X 5.3mm Gull Wing SMD T/R

得捷:
TRIMMER 2K OHM 0.25W GW TOP ADJ

艾睿:
Calibrate the resistance of a circuit with this 3214X-1-202E potentiometer from Bourns. This product has a resistance value of 2K Ohm. This dependable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device is made with cermet technology. It has a tolerance of 10%. This product is 4.8 mm long, 5.3 mm tall and 5.7 mm deep. This part has an operating temperature of -65 to 150 °C. The 3214X-1-202E part has a gull wing termination style.

安富利:
Res Cermet Trimmer 2K Ohm 10% 1/4W 5ElecTurn 1.5mm 4.8 X 5.7 X 5.3mm Gull Wing SMD Embossed T/R

Chip1Stop:
Res Cermet Trimmer 2K Ohm 10% 0.25W1/4W 5ElecTurn 1.5mm 4.8 X 5.7 X 5.3mm Gull Wing SMD Embossed T/R

Verical:
Res Cermet Trimmer 2K Ohm 10% 0.25W1/4W 5ElecTurns 1.5mm 4.8 X 5.7 X 5.3mm Gull Wing SMD T/R

Newark:
# BOURNS  3214X-1-202E  Trimmer Potentiometer, Surface Mount, 2 kohm, 250 mW, ± 10%, 3214 Series, 5 Turns

MASTER:
Res Cermet Trimmer 2K Ohm 10% 0.25W1/4W 5ElecTurns 1.5mm 4.8 X 5.7 X 5.3mm Gull Wing SMD T/R

Online Components:
Res Cermet Trimmer 2K Ohm 10% 0.25W1/4W 5ElecTurns 1.5mm 4.8 X 5.7 X 5.3mm Gull Wing SMD T/R

Electro Sonic:
Res Cermet Trimmer 2K Ohm 10% 0.25W1/4W 5ElecTurns 1.5mm 4.8 X 5.7 X 5.3mm Gull Wing SMD T/R
