32-0141-0

TALLYSMAN WIRELESS  32-0141-0  放大器, 直列式, 1.2-1.75GHZ, 40DB, TW141

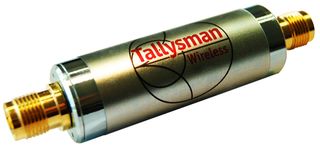

is a TW141 rugged, waterproof wideband 40dB gain inline amplifier, specially designed to boost weak frequency signals from 1200MHz to 1750MHz, including L Band and all GNSS GPS, GLONASS and Galileo signals. The TW141 provides for much longer cable runs from antenna to receiver without degradation of system sensitivity, for applications such as mast mount, large vehicle and timing systems. The TW141 passes DC directly from input to output to support centre conductor DC supply to the antenna, and so avoids the need for an additional bias source or bias "T".

.

Very low noise is less than 2dB

.

75mA maximum current consumption

.

Wide input voltage 5V to 10V

.

Cylindrical nickel plated brass housing

.

Powered via antenna coax from receiver

.

50ohm port impedance

.

Improves signal reception

.

Enables extended cable runs

.

Avoid installation of costly low loss cable

.

Fits in line with antenna cable
