瞬态电压抑制二极管 Transient Voltage Suppression Diodes
Description
The 30KPA Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
得捷:

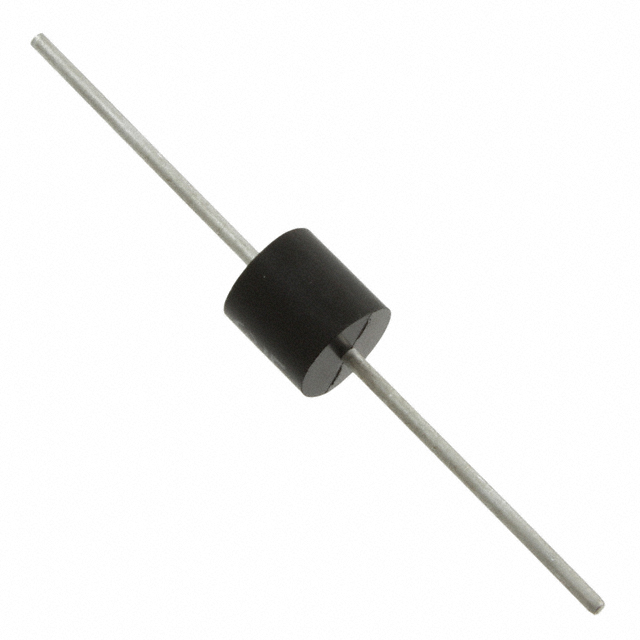

TVS DIODE 132VWM 213VC P600
艾睿:
Take the extra step in your circuitry by implementing surge protection with this 30KPA132CA TVS diode from Littelfuse. Its test current is 5 mA. Its maximum leakage current is 2 μA. Its peak pulse power dissipation is 30000 W. This device&s;s maximum clamping voltage is 213 V and minimum breakdown voltage is 147.4 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
Chip1Stop:
Diode TVS Single Bi-Dir 132V 30KW 2-Pin Case P-600 T/R
