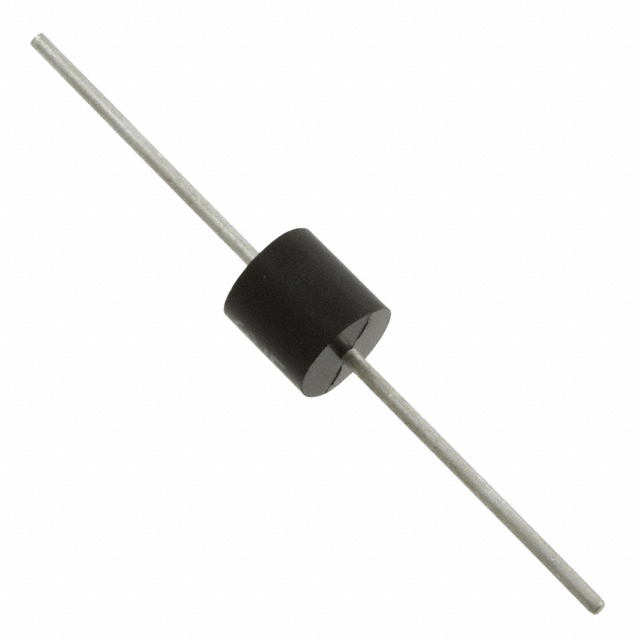

瞬态电压抑制二极管轴向引线 - 30000W Transient Voltage Suppression Diodes Axial Leaded - 30000W
Description
The 30KPA Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
得捷:
TVS DIODE 51VWM 86.4VC P600
立创商城:
Vrwm:51V 30kW
艾睿:
This 30KPA51CA TVS diode from Littelfuse protects against overvoltages. Its test current is 5 mA. Its maximum leakage current is 100 μA. This device&s;s maximum clamping voltage is 86.4 V and minimum breakdown voltage is 57 V. Its peak pulse power dissipation is 30000 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
Chip1Stop:

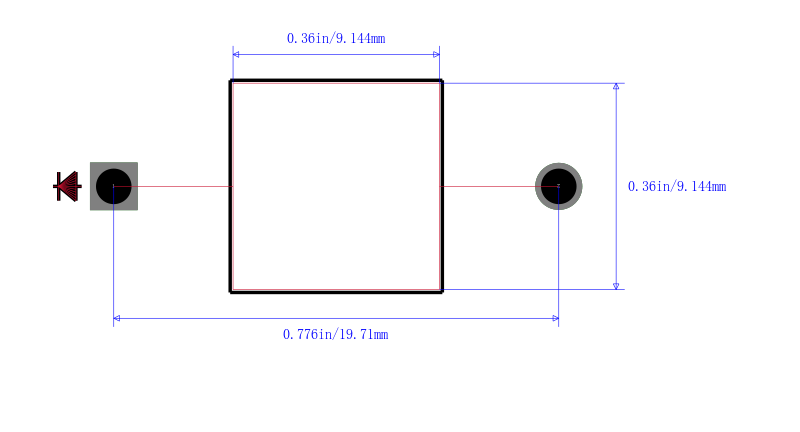

Diode TVS Single Bi-Dir 51V 30KW 2-Pin Case P-600 T/R
