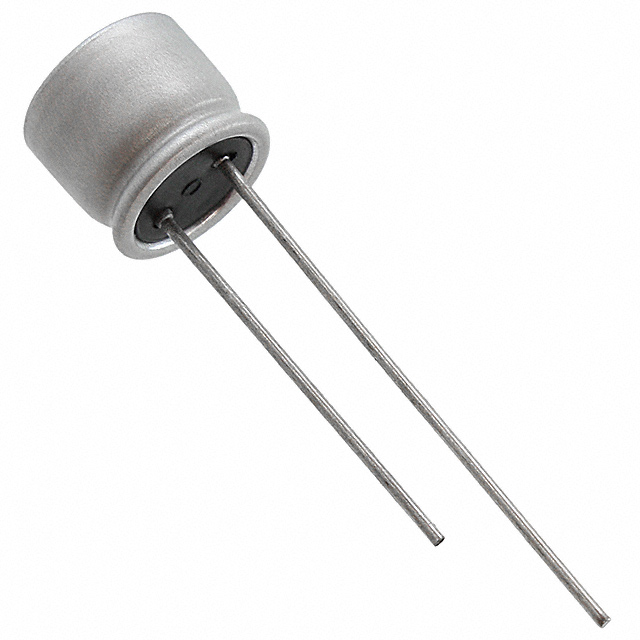

32SEPF68M+TSS

Cap Aluminum Polymer 68uF 32VDC 20% 8 X 7mm Radial 3.5mm 0.025Ω 3200mA 5000H 105℃ T/R

68 µF 32 V 铝聚合物器 径向，Can 25 毫欧 105°C 时为 5000 小时

得捷:
CAP ALUM POLY 68UF 20% 32V T/H

立创商城:
68uF ±20% 32V

艾睿:
If you require a component that can control the power coming into your integrated circuit, then the 32SEPF68M+TSS polymer capacitor from Panasonic is for you. Users like its long lead wire form. It can withstand a voltage of 32 VDC. This part has a lead diameter of 0.6 mm. It has 2 terminals. It has a tolerance of 20%. This product&s;s terminal pitch is 3.5 mm. Its leakage current is 435@2Min μA. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. This product is 7Max mm tall with a diameter of 8 mm. The 32SEPF68M+TSS conductive polymer aluminum solid capacitor has a radial termination style.

Verical:
Cap Aluminum Polymer 68uF 32VDC 20% 8 X 7mm Radial 3.5mm 0.025 Ohm 3200mA 5000h 105C T/R

MASTER:
Cap Aluminum Polymer 68uF 32VDC 20% 8 X 7mm Radial 3.5mm 0.025 Ohm 3200mA 5000h 105°C T/R
