Conn Shielded Compact Ribbon M 10POS 2mm Solder ST SMD 10 Terminal 1Port
10 位置 SCR 插头 焊接 表面贴装型
得捷:
CONN SCR PLUG 10POS SLD SMD
艾睿:

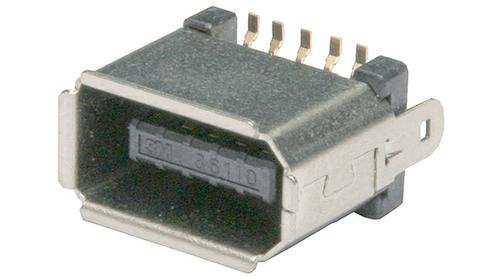

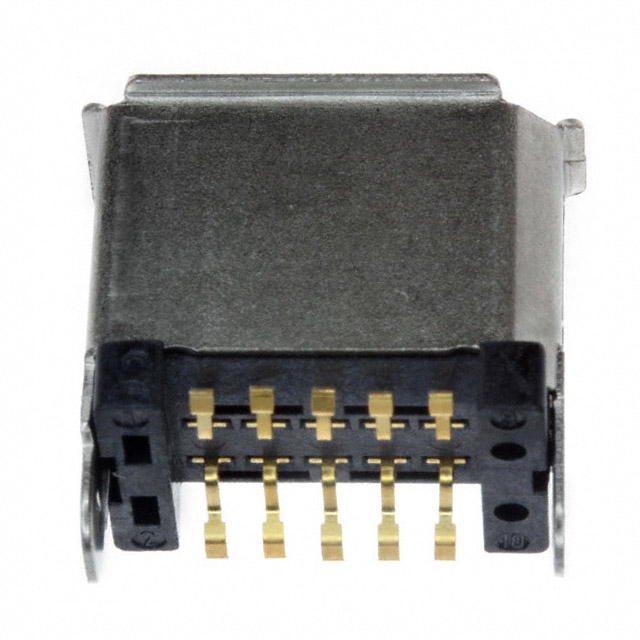

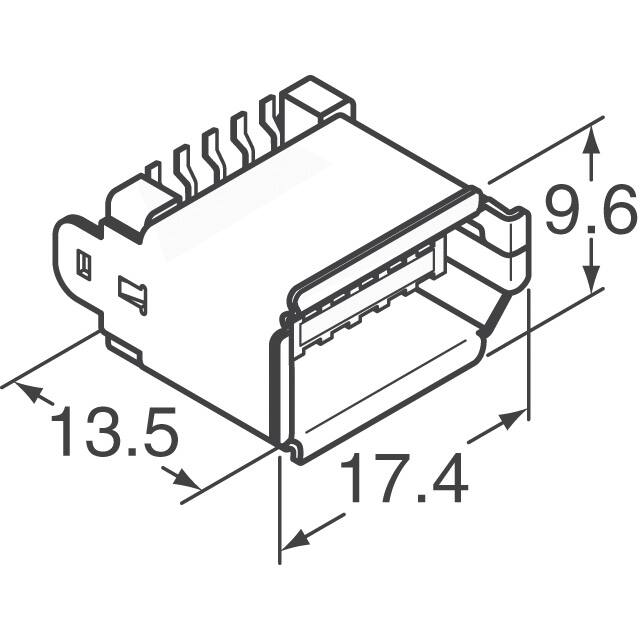

Need to connect video and sound in your application? Look no further and use this shielded compact ribbon 36110-1110PL audio and video connector from 3M. This M connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 200 VDC|150VAC. It has a male type gender. It has a straight body orientation. This connector has a single port. Its pitch is 2 mm. This device has a maximum current rating of 1 A. 36110-1110PL is housed in liquid crystal polymer. This product is 17.4 mm long, 13.5 mm tall and 10.2 mm deep. This part has an operating temperature range of -55 °C to 85 °C. Its 10 terminals use the solder termination method.
Chip1Stop:
Conn Shielded Compact Ribbon M 10 POS 2mm Solder ST SMD 10 Terminal 1 Port Each
Verical:
36110-1110PL
Newark:
# 3M 36110-1110PL I/O Connector, 10 Contacts, Plug, Shielded Contact Ribbon, Surface Mount, 361 Series, PCB Mount
