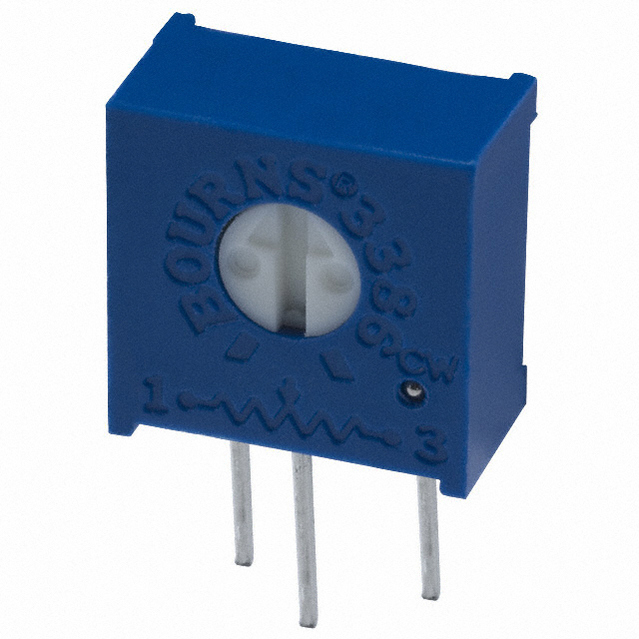

BOURNS 3386H-1-500LF 微调电位器, 50 Ω, 10%, 1转, 通孔安装
3386H 侧调
### 单转 10mm 金属陶瓷
Bourns® 3386 3/8" 方形单转金属陶瓷微调电位计 Trimpot®
各种类型选择,包括指调
封闭式设计,可进行电路板冲洗
模制主体,带有内置印刷电路板支架
欧时:
3386H side adj cermet trimmer 50R 10%
得捷:
TRIMMER 50 OHM 0.5W PC PIN SIDE
艾睿:
Not sure what resistance value you need? No problem, applying this 3386H-1-500LF potentiometer from Bourns will allow you to change the resistance in a matter of seconds. This product has a resistance value of 50 Ohm. This durable part has a power rating of 0.5 1/2 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device is made with cermet technology. The 3386H-1-500LF part has a pin termination style. This product is 9.53 mm long, 9.53 mm tall and 4.83 mm deep. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 10%.
Allied Electronics:
3386H side adj cermet trimmer 50R 10%
安富利:
Res Cermet Trimmer 50 Ohm 10% 1/2W 1Elec/1MechTurn 3.15mm 9.53 X 4.83 X 9.53mm Pin Thru-Hole Tube
Chip1Stop:
Res Cermet Trimmer 50 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 4.83 X 9.53mm Pin Thru-Hole Tube
Verical:
Res Cermet Trimmer 50 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 4.83 X 9.53mm Pin Thru-Hole Tube
Newark:
# BOURNS 3386H-1-500LF Trimmer Potentiometer, Through Hole, 50 ohm, 500 mW, ± 10%, Trimpot 3386 Series, 1 Turns
MASTER:
Res Cermet Trimmer 50 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 4.83 X 9.53mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 50 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 4.83 X 9.53mm Pin Thru-Hole Tube
容差 ±10 %
额定功率 0.5 W
电阻 50 Ω
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole
封装 Square - 0.375" L x 0.155" W x 0.375" H 9.53mm x 3.94mm x 9.53mm
长度 9.53 mm
宽度 4.83 mm
高度 9.53 mm
封装 Square - 0.375" L x 0.155" W x 0.375" H 9.53mm x 3.94mm x 9.53mm
颜色 Blue
重量 845 mg
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
