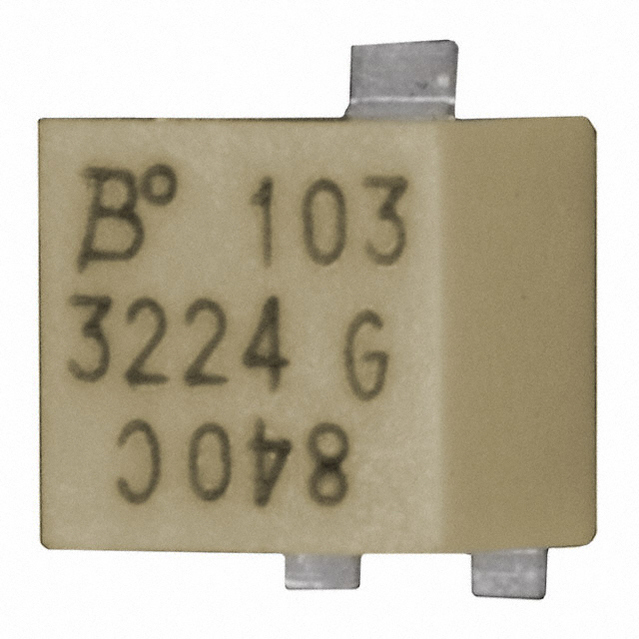

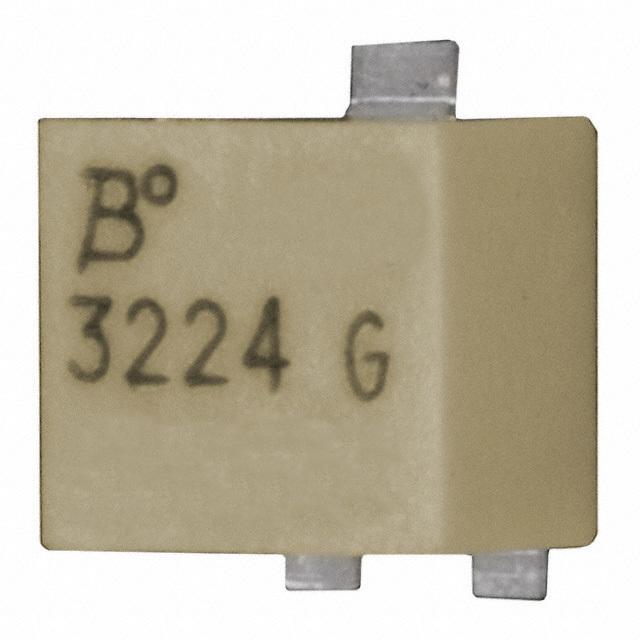

BOURNS 3224G-1-500E 微调电位器, 50 Ω, 10%, 12转, SMD
These industrial 1⁄4-watt 4 mm 11-turn square surface mount cermet trimmers are sealed to withstand board wash processing. The pick and place centering design have flush adjustment. The design meets EIA/EIAJ/IPC/VRIC SMD standard trimmer footprint. Wiper idles when the stop is reached.
**Features:**
* Resistance Tolerance: ±10%
* Power Rating: 0.25 Watt at 85°C
* Dielectric Strength: 600 VAC
* Temperature Range: –65°C to +150°C
* Load Life: 1000 Hours
* Adjustment Tool: H-91
* Terminal: J-Hook, Gull Wing
