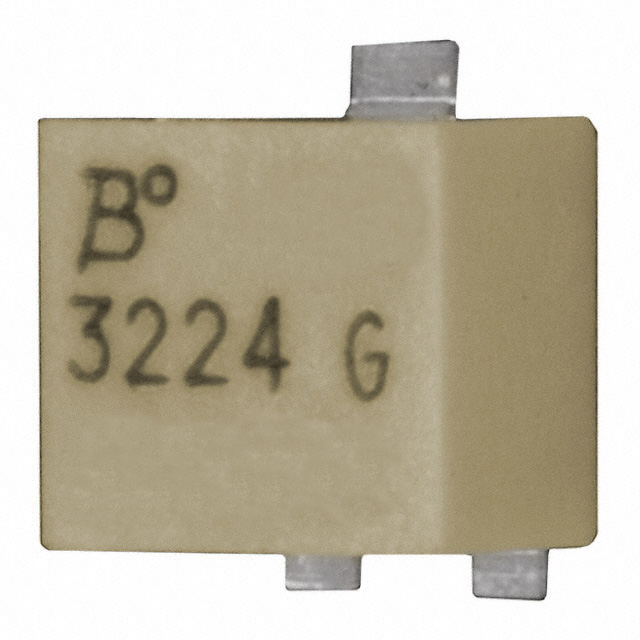

3224G-1-105E

微调电位器, 1 Mohm, 12 转, 表面安装设备, 3224G系列, 250 mW, ± 10%

These industrial 1⁄4-watt 4 mm 11-turn square surface mount cermet trimmers are sealed to withstand board wash processing. The pick and place centering design have flush adjustment. The design meets EIA/EIAJ/IPC/VRIC SMD standard trimmer footprint. Wiper idles when the stop is reached.

**Features:**

* Resistance Tolerance: ±10%

* Power Rating: 0.25 Watt at 85°C

* Dielectric Strength: 600 VAC

* Temperature Range: –65°C to +150°C

* Load Life: 1000 Hours

* Adjustment Tool: H-91

* Terminal: J-Hook, Gull Wing
