3362R-1-103LF

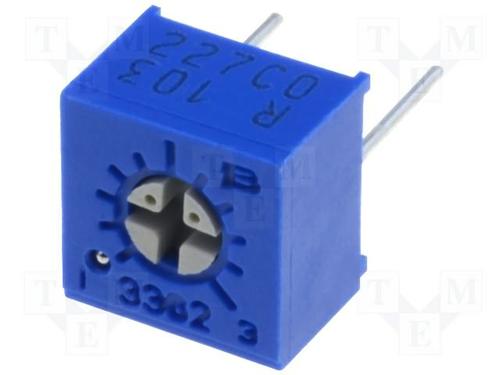

BOURNS  3362R-1-103LF  微调电位器, 10kΩ

This 1⁄4" square trimming potentiometer is ideal for industrial applications. It is sealed to withstand harsh environments and immersion cleaning processes. The rotor is designed for automatic machine adjustment interface. The miniature package saves space on the circuit board.

**Featrues:**

* Resistance Tolerance: ±10%

* Power Rating: 0.5 Watt @ 70°C

* Temperature Range: –55°C to +125°C

* Temperature Coefficient: ±100 ppm/°C

* Mechanical Angle: 270°. Terminals are Solderable Pins

* Rotational Life: 200 Cycles

* Termination Finishes: 100% Tin
