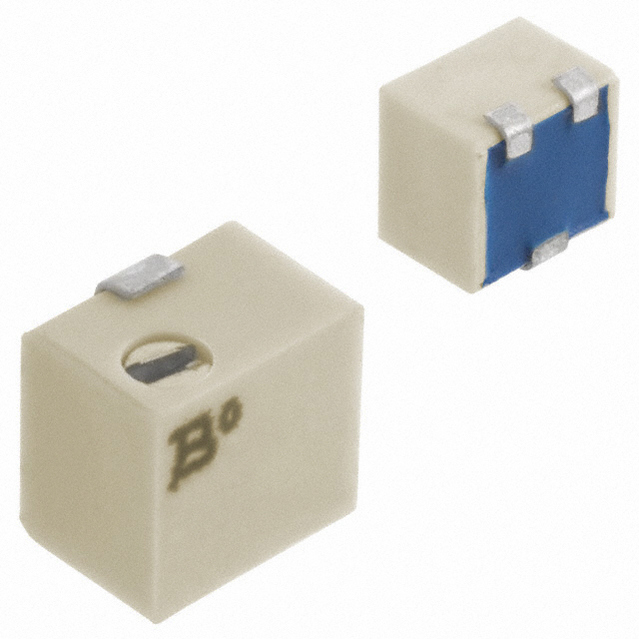

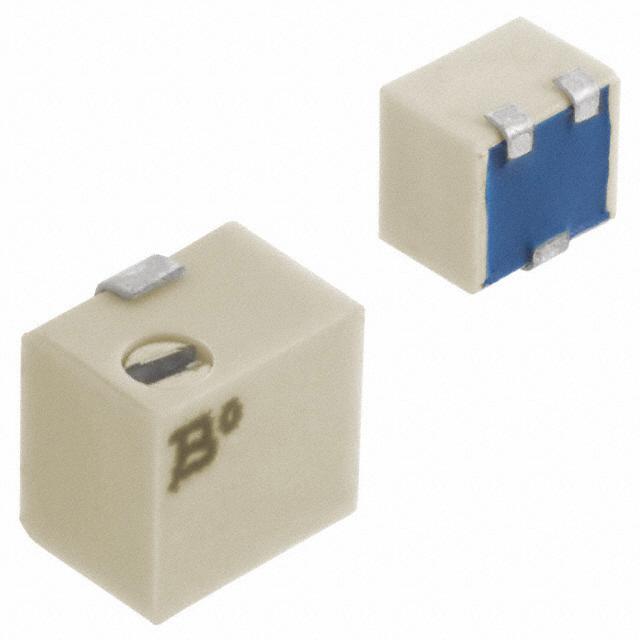

3214J-1-105E

BOURNS  3214J-1-105E  微调电位器, 1MΩ, 10%, 5转, SMD

4 mm Square 5-turn, cermet, sealed trimmer.

.

*

Features:

**

* Resistance Tolerance: ±10%

* Power Rating: 0.25 Watt at 85°C

* Dielectric Strength: 600 VAC

* Temperature Range: –65°C to +150°C

* Load Life: 1000 Hours

* Adjustment Tool: H-91

* Sealed to Withstand Board Wash Processing

* Pick and Place Centering Design, with Flush Adjustment

* 4 mm Design Meets EIA/EIAJ/IPC/VECI SMD Standard Trimmer Footprint

* Patent #5047746 Advanced Drive/Wiper Mechanism
