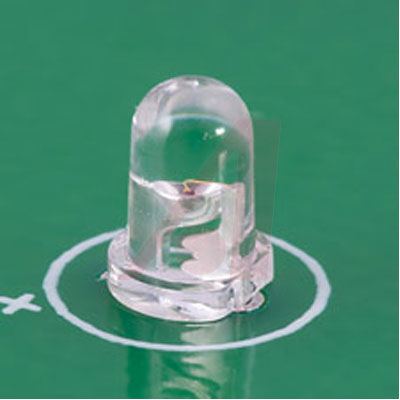

3SURC-F图片3
3SURC-F图片4
3SURC-F概述

Standard LEDs - Through Hole LED Thru-Hole 3mm Red 660nm

** L2-PG Series**

Bivar L2 circular arrays with Cree XLamp LEDs are the first light engines available in the industry to offer Cree"s XLamp LEDs on a starboard. These starboard light engines are optimized for high output, high Color rendering index, lighting uniformity, making them ideal for directional lighting applications in both indoor and outdoor environments. They deliver light with consistent CCT in a highly efficient package that enables true halogen performance in a thermally constrained design.

3SURC-F中文资料参数规格
技术参数

正向电压 1.8 V

波长 640 nm

发光强度 200 mcd

视角 30°

峰值波长 640 nm

耗散功率 70 mW

测试电流 20 mA

正向电流 20 mA

正向电压Max 2.4 V

正向电流Max 30 mA

工作温度Max 85 ℃

工作温度Min -25 ℃

耗散功率Max 70 mW

封装参数

安装方式 Through Hole

引脚数 2

封装 T-1

外形尺寸

高度 5.30 mm

封装 T-1

物理参数

颜色 Red

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

数据手册

在线购买3SURC-F
型号: 3SURC-F
制造商: Bivar
描述:Standard LEDs - Through Hole LED Thru-Hole 3mm Red 660nm
