3386X-1-225LF

BOURNS  3386X-1-225LF  微调电位器, 2.2MΩ, 10%, 1转, 通孔安装

3386X 侧调

### 单转 10mm 金属陶瓷

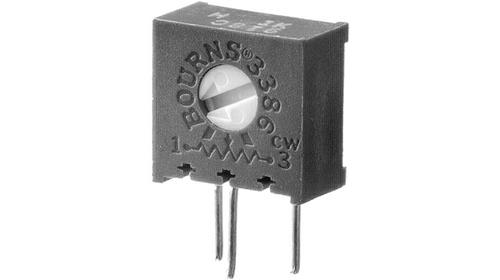

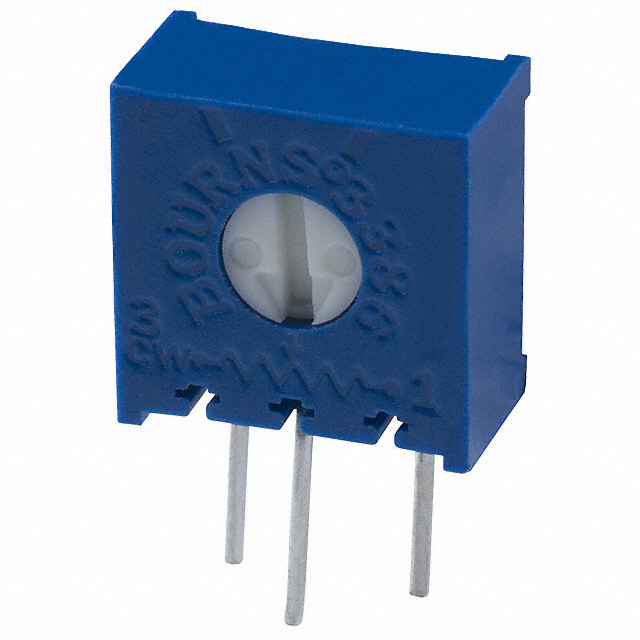

Bourns® 3386 3/8" 方形单转金属陶瓷微调电位计 Trimpot®

各种类型选择，包括指调

封闭式设计，可进行电路板冲洗

模制主体，带有内置印刷电路板支架

欧时:
3386X 1 turn Cermet trimmer 2M5 10%

贸泽:
Trimmer Resistors - Through Hole 3/8" SQ TRIMPOT 2.2M ST SEALED CERMET

艾睿:
Optimization and calibration of resistance in a circuit has never been easier with this 3386X-1-225LF potentiometer from Bourns! This durable part has a power rating of 0.5 1/2 W. This product has a resistance value of 2.2M Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a tolerance of 10%. The 3386X-1-225LF part has a pin termination style. This product is 9.53 mm long, 9.53 mm tall and 4.83 mm deep. This part has an operating temperature of -55 to 125 °C. This device is made with cermet technology.

Allied Electronics:
3386X 1 turn Cermet trimmer 2M5 10%

安富利:
Res Cermet Trimmer 2.2M Ohm 10% 1/2W 1Elec/1MechTurn 3.15mm 9.53 X 4.83 X 9.53mm Pin Thru-Hole Tube

Verical:
Res Cermet Trimmer 2.2M Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 4.83 X 9.53mm Pin Thru-Hole Tube

Newark:
# BOURNS  3386X-1-225LF  TRIMMER, POT, 2.2MOHM, 10%, 1TURN, TH

Electro Sonic:
Res Cermet Trimmer 2.2M Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 4.83 X 9.53mm Pin Thru-Hole Tube
