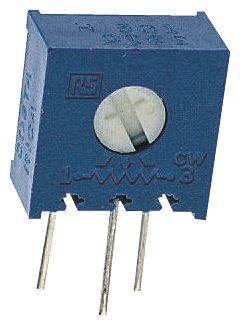

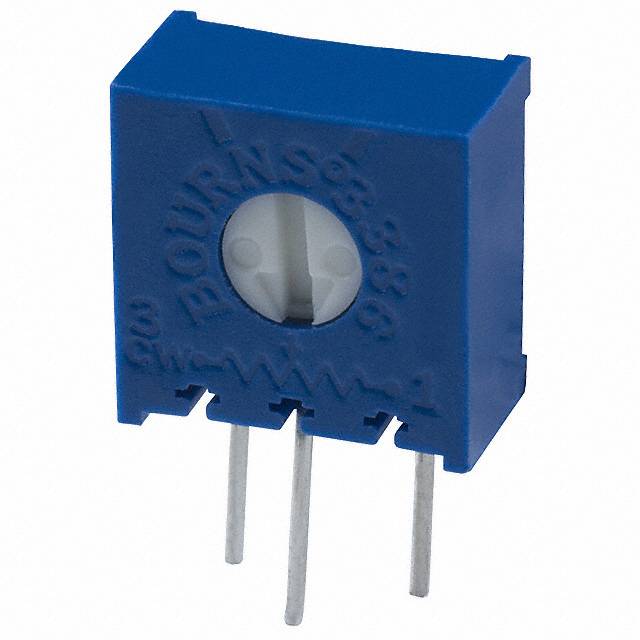

BOURNS 3386X-1-252LF 微调电位器, 2.5KΩ, 10%, 1转, 通孔安装
3386X 侧调
欧时:
Bourns 3386X 系列 通孔 微调电阻器 3386X-1-252LF, 带焊针接端, 2.5kΩ ±10%, 0.5W, ±100ppm/°C
贸泽:
Trimmer Resistors - Through Hole 3/8" 2.5Kohms 10% 0.5Watts Square
艾睿:
Are you looking for a way to calibrate resistance and optimize your circuit? Then this 3386X-1-252LF potentiometer from Bourns is your solution! This product has a resistance value of 2.5K Ohm. This durable part has a power rating of 0.5 1/2 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This part has an operating temperature of -55 to 125 °C. The 3386X-1-252LF part has a pin termination style. This device is made with cermet technology. It has a tolerance of 10%. This product is 9.53 mm long, 9.53 mm tall and 4.83 mm deep.
Allied Electronics:
3386X 1 turn Cermet trimmer 2K5 10%
Verical:
Res Cermet Trimmer 2.5K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 4.83 X 9.53mm Pin Thru-Hole Tube
Newark:
# BOURNS 3386X-1-252LF TRIMMER, POT, 2.5KOHM, 10%, 1TURN, TH
Electro Sonic:
Res Cermet Trimmer 2.5K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 4.83 X 9.53mm Pin Thru-Hole Tube
容差 ±10 %
额定功率 500 mW
电阻 2.5 kΩ
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 300 V
安装方式 Through Hole
长度 9.53 mm
宽度 4.83 mm
高度 9.53 mm
工作温度 55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
