3386H-1-472LF

BOURNS  3386H-1-472LF  微调电位器, 4.7KΩ, 10%, 1转, 通孔安装

3386H 侧调

欧时:

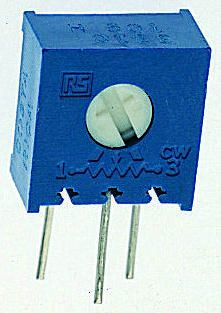

Bourns 3386H 系列 通孔 微调电阻器 3386H-1-472LF, 带焊针接端, 4.7kΩ ±10%, 0.5W, ±100ppm/°C

艾睿:

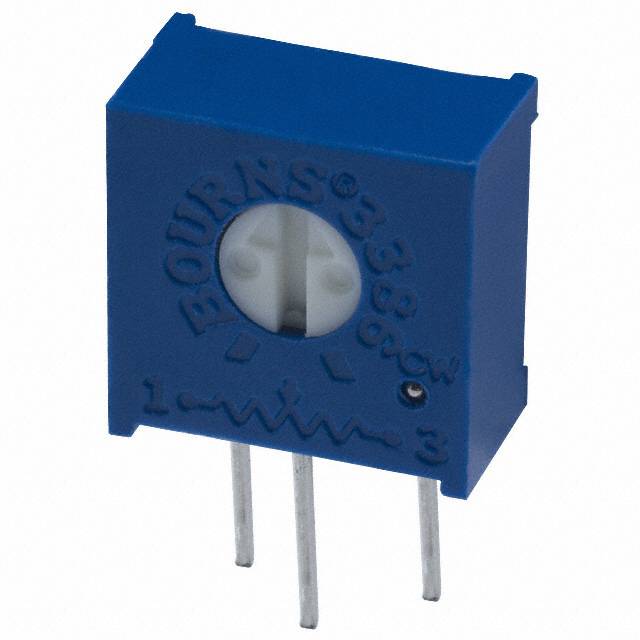

This 3386H-1-472LF potentiometer from Bourns is your solution to resistance calibration in a circuit. This dependable part has a power rating of 0.5 1/2 W. This product has a resistance value of 4.7K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The 3386H-1-472LF part has a pin termination style. This device utilizes cermet technology. This part has an operating temperature of -55 to 125 °C. This product is 9.53 mm long, 9.53 mm tall and 4.83 mm deep. It has a tolerance of 10%.

Allied Electronics:
3386H side adj cermet trimmer 4K7 10%

安富利:
Res Cermet Trimmer 4.7K Ohm 10% 1/2W 1Elec/1MechTurn 3.15mm 9.53 X 4.83 X 9.53mm Pin Thru-Hole Tube

Chip1Stop:
Res Cermet Trimmer 4.7K Ohm 10% 1/2W 1Elec/1MechTurn 3.15mm 9.53 X 4.83 X 9.53mm Pin Thru-Hole Tube

Verical:
Res Cermet Trimmer 4.7K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 4.83 X 9.53mm Pin Thru-Hole Tube

Newark:
# BOURNS  3386H-1-472LF  TRIMMER, POT, 4.7KOHM, 10%, 1TURN, TH

Electro Sonic:
Res Cermet Trimmer 4.7K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 4.83 X 9.53mm Pin Thru-Hole Tube
