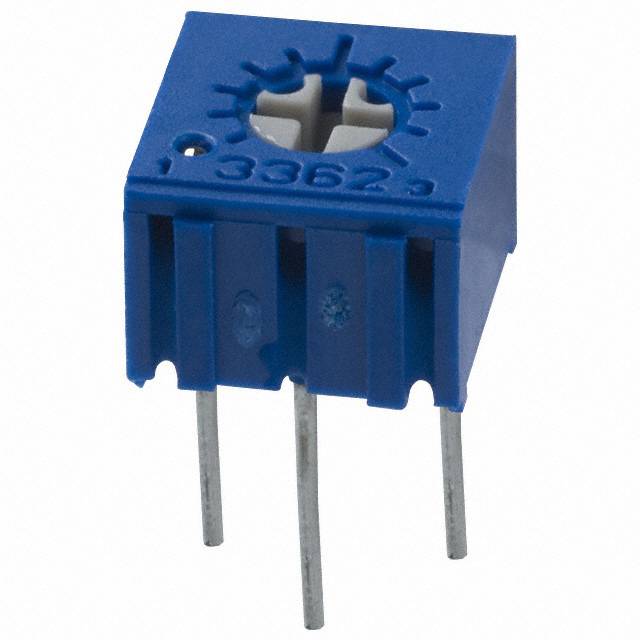

Res Cermet Trimmer 470Ω 10% 0.5W1/2W 1Elec/1MechTurn 2.77mm 6.6 X 6.99 X 4.7mm Pin Thru-Hole Tube
470 Ohms 0.5W，1/2W PC 引脚 通孔 微调电位计 金属陶瓷 1.0 匝 顶部调节
贸泽:
Trimmer Resistors - Through Hole 1/4IN SQ 470 OHM 10% 0.5WATTS
艾睿:
Res Cermet Trimmer 470 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 2.77mm 6.6 X 6.99 X 4.7mm Pin Thru-Hole Tube
Newark:
# BOURNS 3362R-1-471LF Trimmer Potentiometer, Single Turn, 470 ohm, 500 mW, ± 10%, 3362R Series, 1 Turns, Through Hole
Electro Sonic:
Res Cermet Trimmer 470 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 2.77mm 6.6 X 6.99 X 4.7mm Pin Thru-Hole Tube
容差 ±10 %
额定功率 500 mW
电阻 470 Ω
阻值偏差 ±10 %
安装方式 Through Hole
封装 Square - 0.275" L x 0.260" W x 0.185" H 6.99mm x 6.60mm x 4.70mm
封装 Square - 0.275" L x 0.260" W x 0.185" H 6.99mm x 6.60mm x 4.70mm
工作温度 55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
