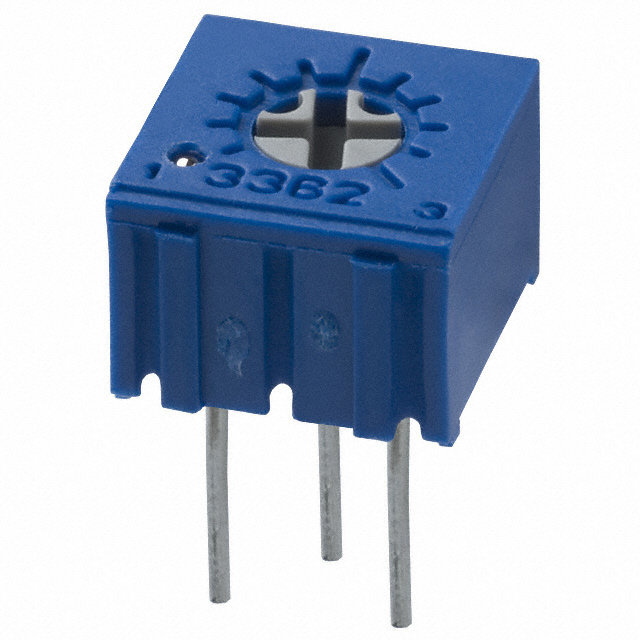

Res Cermet Trimmer 200Ω 10% 0.5W1/2W 1Elec/1MechTurn 2.77mm 6.6 X 6.99 X 4.7mm Pin Thru-Hole Tube
This potentiometer from Bourns is designed to optimize functionality and calibrate the resistance in your circuit. This durable part has a power rating of 0.5 1/2 W. This product has a resistance value of 200 Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The 3362H-1-201LF part has a pin termination style. This part has an operating temperature of -55 to 125 °C. This product is 6.6 mm long, 4.7 mm tall and 6.99 mm deep. It has a tolerance of 10%. This device utilizes cermet technology.
容差 ±10 %
额定功率 0.5 W
电阻 200 Ω
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole
封装 Square - 0.275" L x 0.260" W x 0.185" H 6.99mm x 6.60mm x 4.70mm
长度 6.99 mm
宽度 6.60 mm
高度 4.7 mm
封装 Square - 0.275" L x 0.260" W x 0.185" H 6.99mm x 6.60mm x 4.70mm
颜色 Blue
重量 567 mg
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
