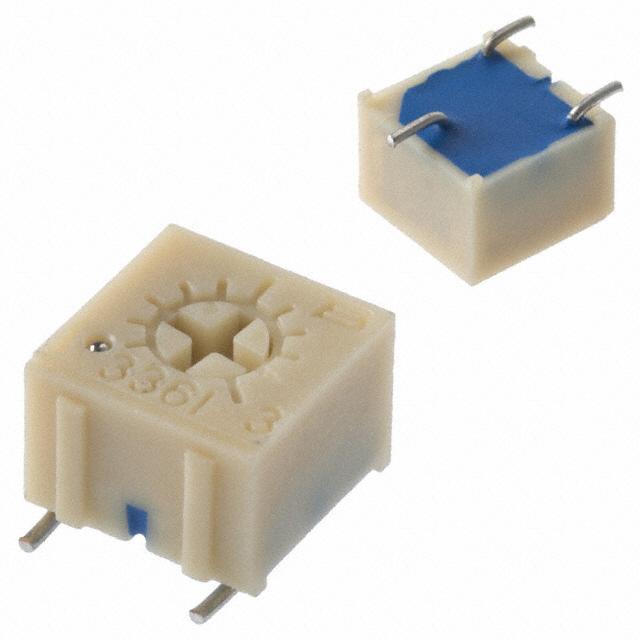

BOURNS 3361P-1-254GLF 微调电位器, 金属陶瓷, 250KΩ, 6MM, 方形
0.5W，1/2W 鸥翼 表面贴装型 微调电位计 金属陶瓷 匝 顶部调节
艾睿:
Apply this 3361P-1-254GLF potentiometer from Bourns to infrequently adjust the resistance value for your circuit. This product has a resistance value of 250K Ohm. This durable part has a power rating of 0.5 1/2 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The 3361P-1-254GLF part has a gull wing termination style. This product is 6.71 mm long, 5.21 mm tall and 8.53 mm deep. This device is made with cermet technology. It has a tolerance of 10%. This part has an operating temperature of -55 to 125 °C.
Chip1Stop:

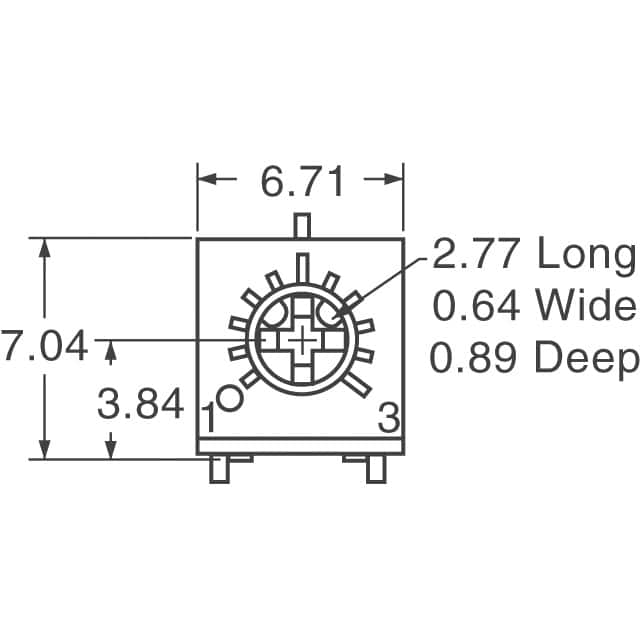

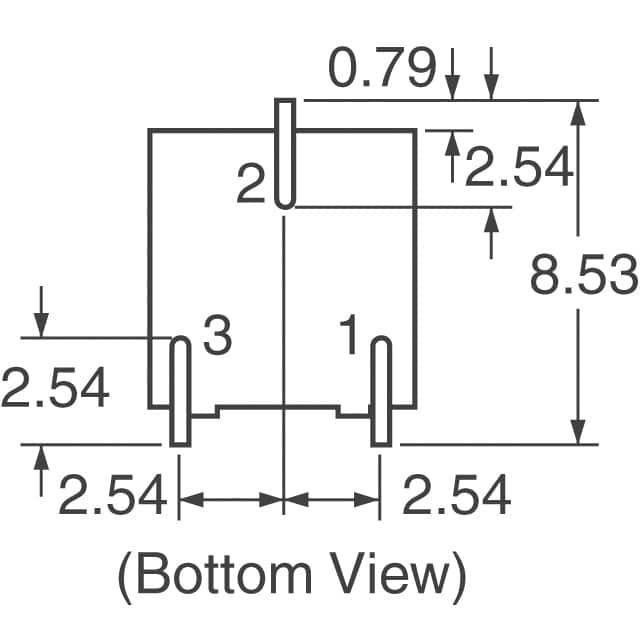

Res Cermet Trimmer 250K Ohm 10% 0.5W1/2W 1Elec/1MechTurns 2.77mm 6.71 X 8.53 X 5.21mm Gull Wing SMD T/R
Verical:
Res Cermet Trimmer 250K Ohm 10% 0.5W1/2W 1Elec/1MechTurns 2.77mm 6.71 X 8.53 X 5.21mm Gull Wing SMD T/R
Newark:
# BOURNS 3361P-1-254GLF Trimmer Potentiometer, Surface Mount, 250 kohm, 500 mW, ± 10%, 3361P Series, 1 Turns
Electro Sonic:
Res Cermet Trimmer 250K Ohm 10% 0.5W1/2W 1Elec/1MechTurns 2.77mm 6.71 X 8.53 X 5.21mm Gull Wing SMD T/R
