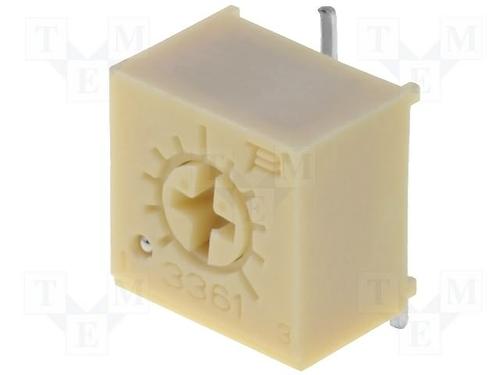

3361 - 1/4广场贴片可调电位器微调电位器 3361 - 1/4 Square SMD Trimpot Trimming Potentiometer
0.5W,1/2W 鸥翼 表面贴装型 微调电位计 金属陶瓷 匝 顶部调节
艾睿:
Optimization and calibration of resistance in a circuit has never been easier with this 3361P-1-204GLF potentiometer from Bourns! This dependable part has a power rating of 0.5 1/2 W. This product has a resistance value of 200K Ohm. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 10%. This device utilizes cermet technology. The 3361P-1-204GLF part has a gull wing termination style. This product is 6.71 mm long, 5.21 mm tall and 8.53 mm deep.
安富利:

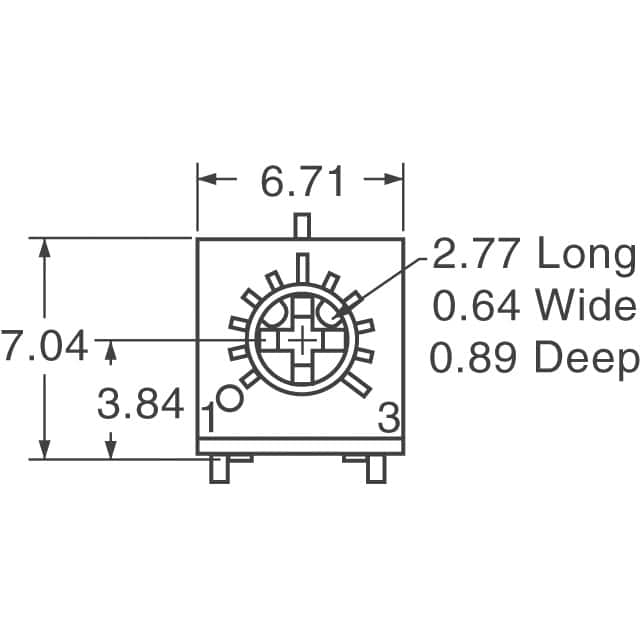

Res Cermet Trimmer 200K Ohm 10% 1/2W 1Elec/1MechTurn 2.77mm 6.71 X 8.53 X 5.21mm Gull Wing SMD Embossed T/R
Chip1Stop:
Res Cermet Trimmer 200K Ohm 10% 0.5W1/2W 1Elec/1MechTurns 2.77mm 6.71 X 8.53 X 5.21mm Gull Wing SMD T/R
TME:
Potentiometer: mounting; single turn, horizontal; 200kΩ; 500mW
Verical:
Res Cermet Trimmer 200K Ohm 10% 0.5W1/2W 1Elec/1MechTurns 2.77mm 6.71 X 8.53 X 5.21mm Gull Wing SMD T/R
Newark:
# BOURNS 3361P-1-204GLF Trimmer, Surface Mount, 200 kohm, 500 mW, ± 10%, 3361P Series, 1 Turns, Surface Mount Device
MASTER:
Res Cermet Trimmer 200K Ohm 10% 0.5W1/2W 1Elec/1MechTurns 2.77mm 6.71 X 8.53 X 5.21mm Gull Wing SMD T/R
Electro Sonic:
Res Cermet Trimmer 200K Ohm 10% 0.5W1/2W 1Elec/1MechTurns 2.77mm 6.71 X 8.53 X 5.21mm Gull Wing SMD T/R
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
3361P-1-204GLF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
3361P-1-204G 伯恩斯 | 完全替代 | 3361P-1-204GLF和3361P-1-204G的区别 |
