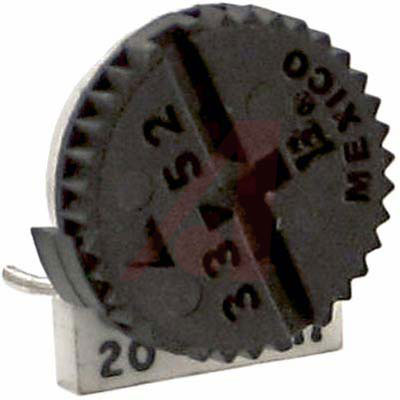

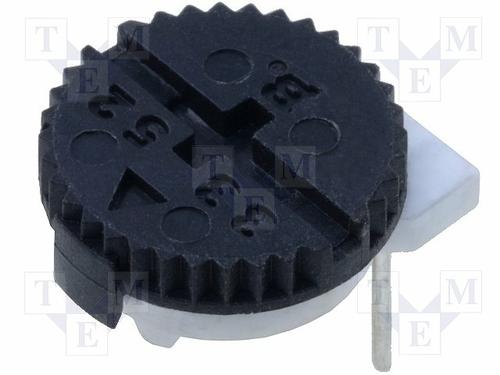

3352T-1-103LF

BOURNS  3352T-1-103LF  可调电阻, 20% 0.5W 单转

Adjustability of ±0.05% voltage ratio and ±0.25% resistance ratio. Stable cermet element offers infinite resolution.

**Specifications

**

* Resistance Tolerance: ±20%**

**

* Power Rating: 0.50 Watt @ 85°C**

**

* Temperature Range: –55°C to +125°C**

**

* Low Temperature Coefficient: ±100 PPM/°C ≥2K; ±150 PPM/°C <2K**

**

* Load Life: 1000 Hrs.**

**

* Termination Finishes: 100% Tin**

Features

**

* Single-Turn/Cermet/Industrial/Open Frame**

**

* Stable Cermet Element Offers Infinite Resolution**

**

* Very Low Profile**

**

* Seven Standard Pin Styles**

**

* Thumb and Screwdriver Adjustment
