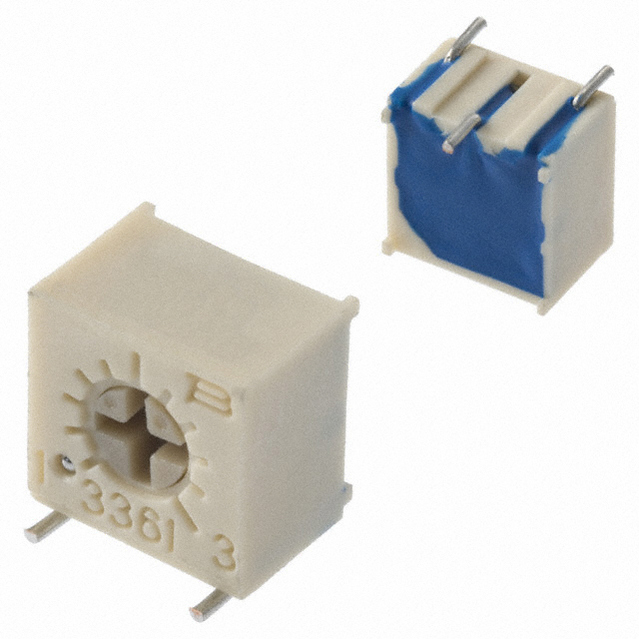

BOURNS 3361S-1-202GLF 微调电位器, 2KΩ, 1转, SMD
Adjustability of ±0.05% voltage ratio and ±0.15% resistance ratio. Stable cermet element offers infinite resolution.
**Specifications
**
* Resistance Tolerance: ±10%**
**
* Power Rating: 0.50 Watt @ 70°C**
**
* Temperature Range: –55°C to +125°C**
**
* Low Temperature Coefficient: ±100 PPM/°C**
**
* Load Life: 1000 Hrs.**
**
* Termination Finishes: 100% Tin**
Features
**
* Single-Turn/Cermet/Industrial Sealed**
**
* Miniature Package**
**
* Rotor Designed for Automatic Machine Adjust Interface**
**
* Withstands Harsh Environments and Immersion Cleaning Processes**
**
* Compatible with Surface Mount Manufacturing Processes
额定电压DC 300 V
绝缘电阻 1000 MΩ
容差 ±10 %
额定功率 0.5 W
电阻 2 KΩ
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 300 V
安装方式 Surface Mount
封装 Square - 0.264" L x 0.192" W x 0.290" H 6.71mm x 4.88mm x 7.37mm
长度 6.71 mm
宽度 6.65 mm
高度 7.37 mm
封装 Square - 0.264" L x 0.192" W x 0.290" H 6.71mm x 4.88mm x 7.37mm
颜色 Natural
重量 0.2571868908 kg
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
