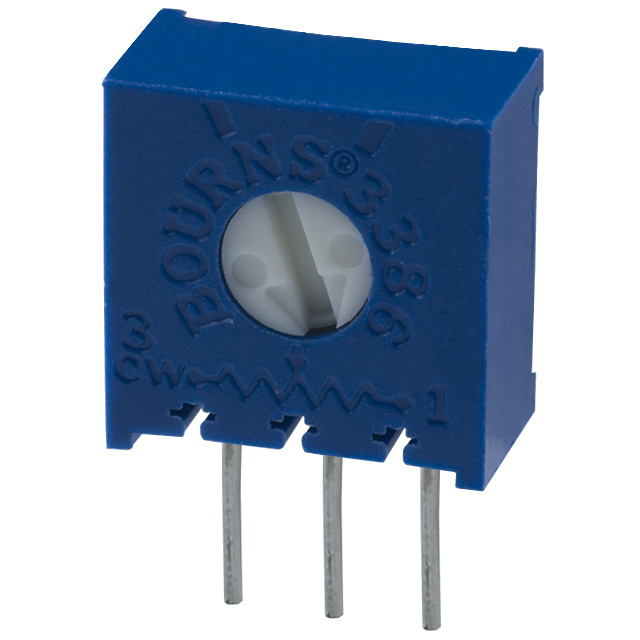

BOURNS 3386C-1-501LF 微调电位器, 500Ω, 1转, 10%, 通孔安装
Calibrate the resistance of a circuit with this potentiometer from Bourns. This part has a power rating of 0.5 1/2 W. This product has a resistance value of 500 Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device utilizes cermet technology. This part has an operating temperature of -55 to 125 °C. The 3386C-1-501LF part has a pin termination style. It has a tolerance of 10%. This product is 9.53 mm long, 9.53 mm tall and 4.83 mm deep.
额定电压DC 300 V
容差 ±10 %
额定功率 0.5 W
电阻 500 Ω
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole
封装 Square - 0.375" L x 0.190" W x 0.375" H 9.53mm x 4.83mm x 9.53mm
长度 9.53 mm
宽度 4.83 mm
高度 9.53 mm
封装 Square - 0.375" L x 0.190" W x 0.375" H 9.53mm x 4.83mm x 9.53mm
颜色 Blue
重量 845 mg
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
3386C-1-501LF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
3386C-1-501 伯恩斯 | 完全替代 | 3386C-1-501LF和3386C-1-501的区别 |
M64X501KB40 威世 | 功能相似 | 3386C-1-501LF和M64X501KB40的区别 |
