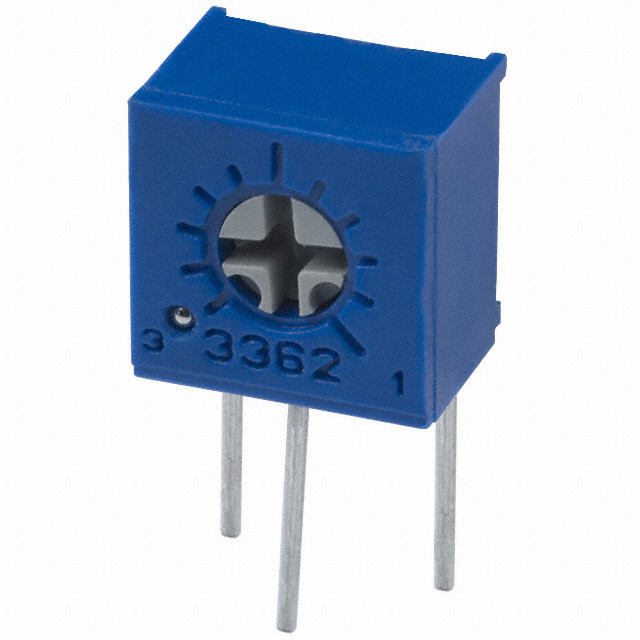

Res Cermet Trimmer 10KΩ 10% 0.5W1/2W 1Elec/1MechTurn 2.77mm 6.6 X 4.7 X 6.99mm Pin Thru-Hole Tube
10 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1 Turn Side Adjustment
贸泽:
Trimmer Resistors - Through Hole 1/4"SQ 10KOHMS 10% 0.5WATTS
艾睿:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 2.77mm 6.6 X 4.7 X 6.99mm Pin Thru-Hole Tube
Chip1Stop:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 2.77mm 6.6 X 4.7 X 6.99mm Pin Thru-Hole Tube
Verical:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 2.77mm 6.6 X 4.7 X 6.99mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 2.77mm 6.6 X 4.7 X 6.99mm Pin Thru-Hole Tube
容差 ±10 %
额定功率 0.5 W
电阻 10 kΩ
阻值偏差 ±10 %
安装方式 Through Hole

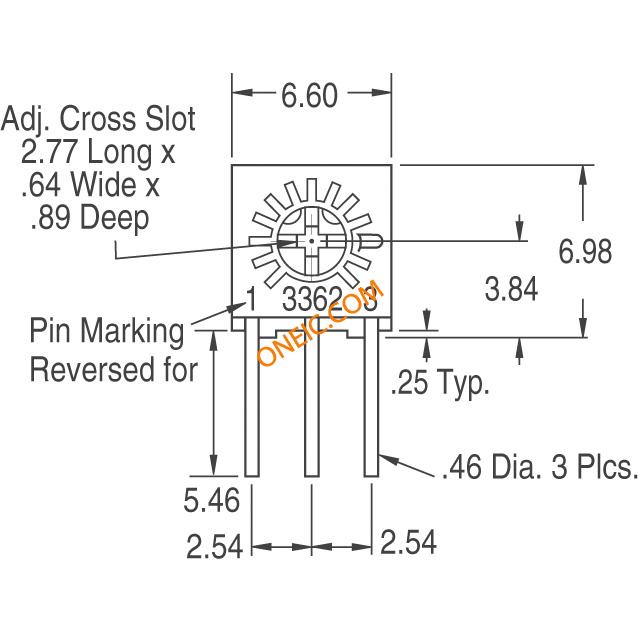

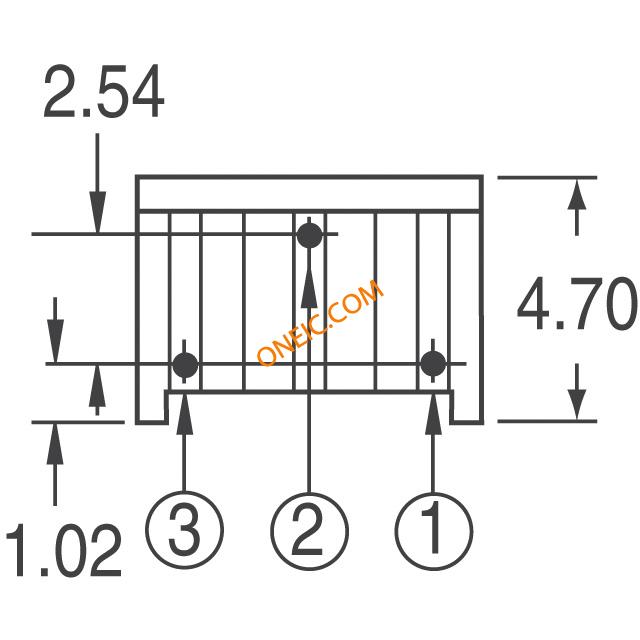

封装 Square - 0.260" L x 0.185" W x 0.275" H 6.60mm x 4.70mm x 6.99mm
长度 6.6 mm
宽度 4.7 mm
高度 6.99 mm
封装 Square - 0.260" L x 0.185" W x 0.275" H 6.60mm x 4.70mm x 6.99mm
颜色 Blue
重量 567 mg
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
