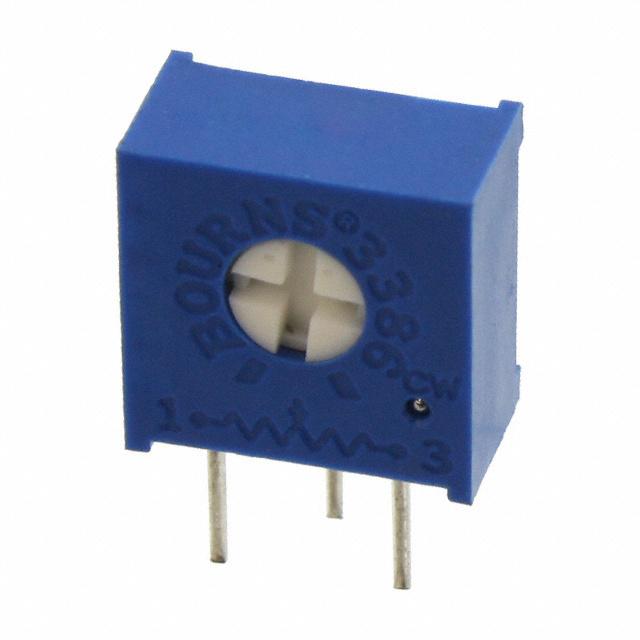

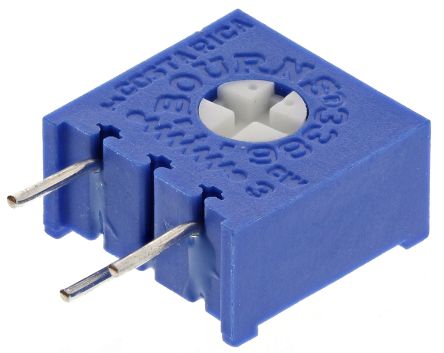

3386V-1-501LF

BOURNS  3386V-1-501LF  微调器,500R

3386V Side Adjust

### 单转 10mm 金属陶瓷

Bourns® 3386 3/8" 方形单转金属陶瓷微调电位计 Trimpot®

各种类型选择，包括指调

封闭式设计，可进行电路板冲洗

模制主体，带有内置印刷电路板支架

欧时:
Bourns 3386 系列 500Ω ±10% 微调电容器 金属陶瓷电位器 3386V-1-501LF, 0.5W, ±100ppm/°C, 通孔

艾睿:
Calibrate the resistance of a circuit with this 3386V-1-501LF potentiometer from Bourns. This dependable part has a power rating of 0.5 1/2 W. This product has a resistance value of 500 Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This part has an operating temperature of -55 to 125 °C. This product is 9.53 mm long, 4.83 mm tall and 9.53 mm deep. This device utilizes cermet technology. It has a tolerance of 10%. The 3386V-1-501LF part has a pin termination style.

Allied Electronics:
3/8"" Sq Trimming Pot, 1Turn Cermet, 500R

安富利:
Res Cermet Trimmer 500 Ohm 10% 1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube

Chip1Stop:
Res Cermet Trimmer 500 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube

Verical:
Res Cermet Trimmer 500 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube

Newark:
# BOURNS  3386V-1-501LF  TRIMMER, 500R

Electro Sonic:
Res Cermet Trimmer 500 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube
