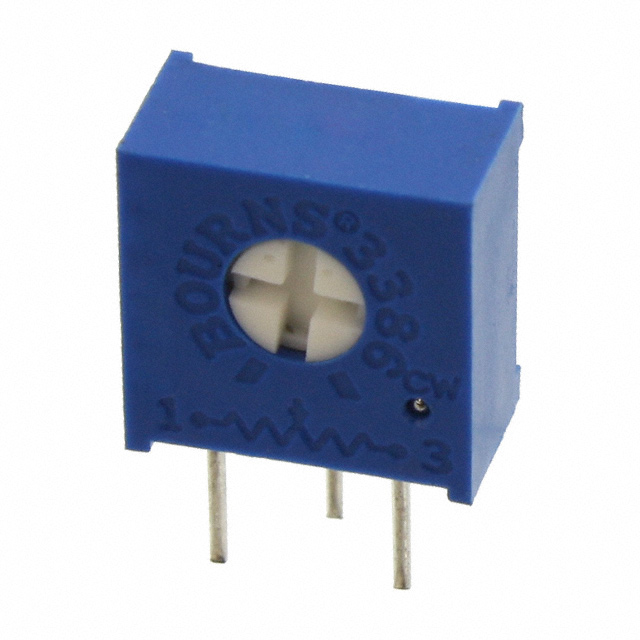

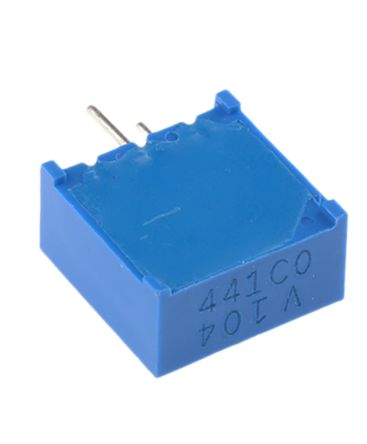

3386V-1-104LF

BOURNS  3386V-1-104LF  微调器,100K

3⁄8" Square units. Infinite resolution cermet element. Sealed to withstand wave soldering and immersion cleaning process.

**Features:**

* Power Rating: 0.5 Watt @ +85°C

* Resistance Tolerance: ±10%

* Adjustability: ±0.05% Voltage Ratio

* Temperature Range: –55°C to 125°C

* Low Temperature Coefficient: ±100 PPM/°C

* Dielectric Strength: 900 VAC @ Sea Level

* Rotational Life: 200 Cycles

* Knob and Shaft Extensions Option Available

欧时:
Bourns 3386 系列, 通孔 电位器 100kΩ ±10% 微调电容器 3386V-1-104LF, 0.5W, ±100ppm/°C 1

贸泽:
微调电阻 - 通孔 3/8" 100Kohms 10% 0.5Watts Square

艾睿:
Are you looking for a way to calibrate resistance and optimize your circuit? Then this 3386V-1-104LF potentiometer from Bourns is your solution! This dependable part has a power rating of 0.5 1/2 W. This product has a resistance value of 100K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a tolerance of 10%. The 3386V-1-104LF part has a pin termination style. This product is 9.53 mm long, 4.83 mm tall and 9.53 mm deep. This device utilizes cermet technology. This part has an operating temperature of -55 to 125 °C.

Allied Electronics:
3/8"" Sq Trimming Pot, 1Turn Cermet, 100K

安富利:
Res Cermet Trimmer 100K Ohm 10% 1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube

Chip1Stop:
Res Cermet Trimmer 100K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube

Verical:
Res Cermet Trimmer 100K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube

Newark:
# BOURNS  3386V-1-104LF  TRIMMER, 100K

Electro Sonic:
Res Cermet Trimmer 100K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube
