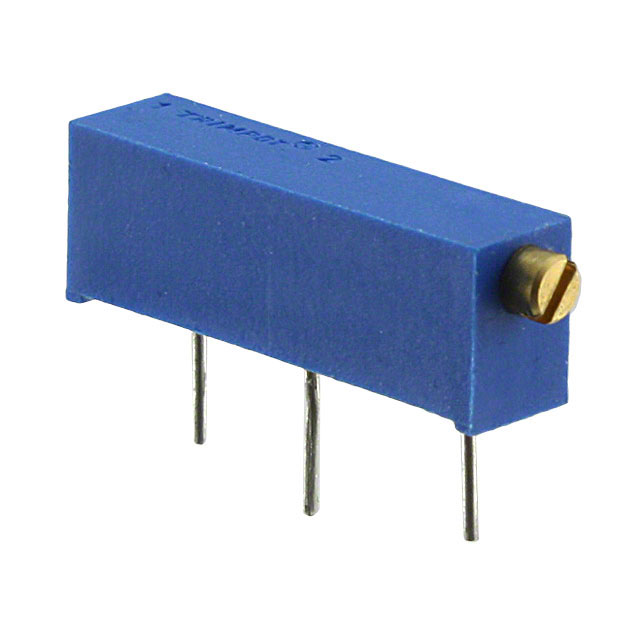

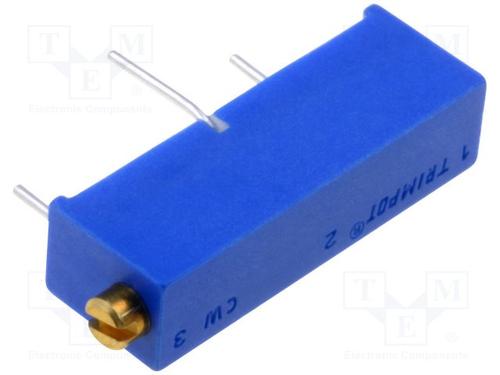

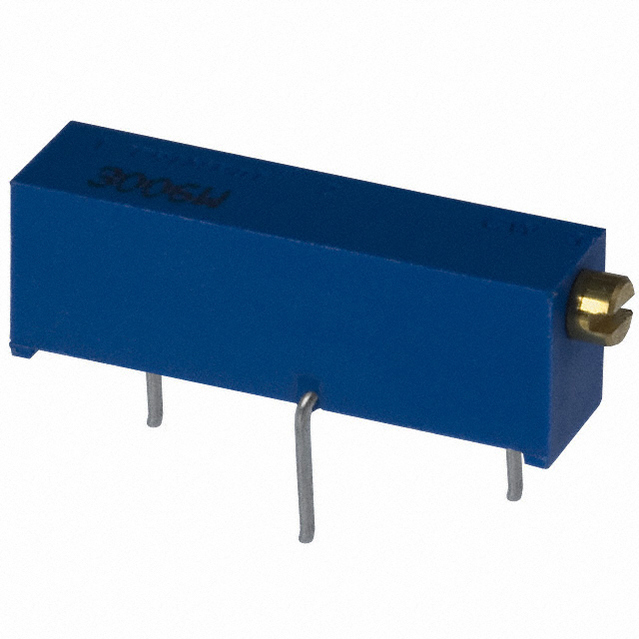

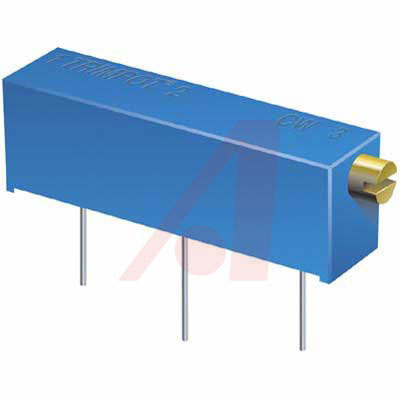

BOURNS 3006W-1-501LF Trimmer Potentiometer, Through Hole, 500Ω, 750mW, ± 10%, 3006W Series, 15 Turns, Through Hole
1⁄4" High, low cost cermet trimmer offers infinite resolution. Sealed to withstand wave soldering and immersion cleaning.- .
- *
Features:
**
* Power Rating: 0.75 Watt at 70°C
* Tolerance: ±10%
* Low Temperature Coefficient: ±100 ppm/°C
* Temperature Range: –55°C to +125°C
* Load Life: 1000 Hours, 0.75 Watt at 70°C
* Suffix: P, W and Y Styles
* Dimensions: 3⁄4" × 0.19" × 0.25". See Drawings Above for Pin Configurations
* Weight: 0.04 Oz.
* Termination Finishes: 100% Tin
额定电压DC 500 V
绝缘电阻 1000 MΩ
容差 ±10 %
额定功率 0.75 W
电阻 500 Ω
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole
封装 Rectangular - 0.750" L x 0.190" W x 0.250" H 19.05mm x 4.83mm x 6.35mm
长度 20.57 mm
宽度 4.83 mm
高度 6.35 mm
封装 Rectangular - 0.750" L x 0.190" W x 0.250" H 19.05mm x 4.83mm x 6.35mm
颜色 Blue
重量 1.14 g
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
