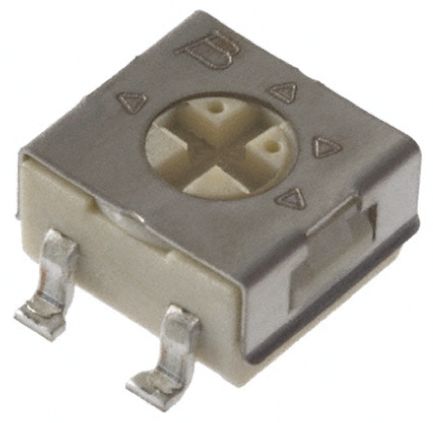

BOURNS 3314G-2-502E 微调电位器, 5KΩ, 20%, 1转, SMD
250mW 4mm 密封 3314G 系列 - 十字槽
外形小巧（标称 4mm 外壳尺寸）
出色的安装效率
适合于流动/回流焊接或手工焊接
适合于自动装配
符合 EIA 和 EIAJ 的占地面积标准
欧时:
Bourns 3314G 系列 表面贴装 微调电阻器 3314G-2-502E, 带鸥翼型接端, 5kΩ ±20%, 0.25W, ±100ppm/°C
艾睿:
This 3314G-2-502E potentiometer from Bourns is designed to optimize functionality and calibrate the resistance in your circuit. This durable part has a power rating of 0.25 1/4 W. This product has a resistance value of 5K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The 3314G-2-502E part has a gull wing termination style. This part has an operating temperature of -55 to 125 °C. This device is made with cermet technology. It has a tolerance of 20%. This product is 5 mm long, 2.55 mm tall and 6.2 mm deep.
Allied Electronics:
3314G SMD top adj cermet trimmer 5K 4mm
安富利:
Res Cermet Trimmer 5K Ohm 20% 1/4W 1Elec/1MechTurn 2.41mm 5 X 6.2 X 2.55mm Gull Wing SMD Embossed T/R
Chip1Stop:
Res Cermet Trimmer 5K Ohm 20% 0.25W1/4W 1Elec/1MechTurn 2.41mm 5 X 6.2 X 2.55mm Gull Wing SMD Embossed T/R
Verical:
Res Cermet Trimmer 5K Ohm 20% 0.25W1/4W 1Elec/1MechTurns 2.41mm 5 X 6.2 X 2.55mm Gull Wing SMD T/R
Newark:
# BOURNS 3314G-2-502E TRIMMER, POT, 5KOHM, 20%, 1TURN, SMD
Win Source:
TRIMMER 5K OHM 0.25W SMD
