3310Y-001-502L

BOURNS  3310Y-001-502L.  旋转电位器, 5KΩ, 250mW

9mm 3310Y 系列三角形引脚

紧凑封装 - 节省电路板和面板空间

封闭式设计，可进行电路板冲洗

模制主体，内置支脚，可在面板和印刷电路板上安装

塑料衬套和塑料轴

温度 - 40 至 +125°C

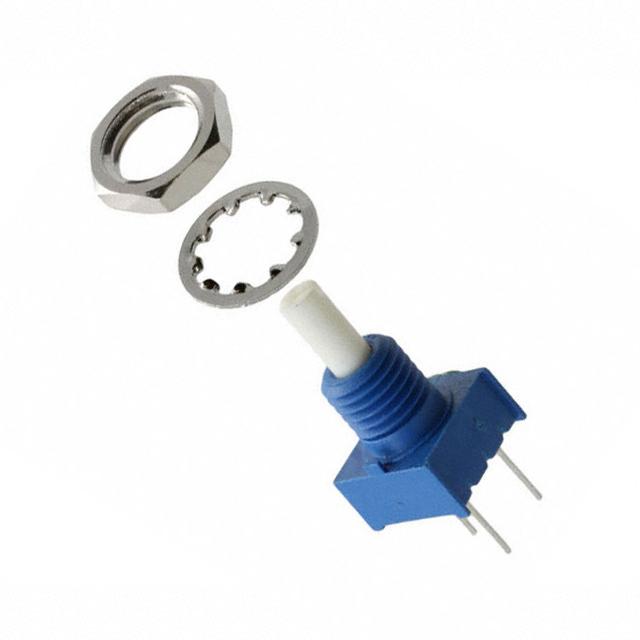

### 随附

金属锁紧垫圈和螺母

欧时:
Bourns 3310 系列 连续 转 5kΩ ±20% 旋转 导电塑料电位计 3310Y-001-502L, 0.25W, 3.18 mm 直径轴

得捷:
POT 5K OHM 1/4W PLASTIC LINEAR

贸泽:
Potentiometers 9mm 5Kohms Single Cup

艾睿:
Res Conductive Plastic POT 5K Ohm 20% 0.25W1/4W 1Elec/1MechTurn 3.18mm 9.53 X 9.53 X 17.88mm Pin Panel Mount/Through Hole

Allied Electronics:
Potentiometer, Pot, Panel Control, .25 Watt, 1/4 Watt, 20%, 5K

安富利:
Res Conductive Plastic POT 5K Ohm 20% 1/4W 1Elec/1MechTurn 3.18mm 9.53 X 9.53 X 17.88mm Pin Panel Mount/Through Hole

Chip1Stop:
Res Conductive Plastic POT 5K Ohm 20% 0.25W1/4W 1Elec/1MechTurn 3.18mm 9.53 X 9.53 X 17.88mm Pin Panel Mount/Through Hole

TME:
Potentiometer: shaft; single turn; 5kΩ; 0.25W; ±20%; 3.18mm; linear

Verical:
Res Conductive Plastic POT 5K Ohm 20% 0.25W1/4W 1Elec/1MechTurn 3.18mm 9.53 X 9.53 X 17.88mm Pin Panel Mount/Through Hole

Newark:
# BOURNS  3310Y-001-502L  Rotary Potentiometer, Sealed Panel Control, 5 kohm, 250 mW, ± 20%, 3310Y Series, 1 Turns, Linear

MASTER:
Res Conductive Plastic POT 5K Ohm 20% 0.25W1/4W 1Elec/1MechTurn 3.18mm 9.53 X 9.53 X 17.88mm Pin Panel Mount/Through Hole

Electro Sonic:
Res Conductive Plastic POT 5K Ohm 20% 0.25W1/4W 1Elec/1MechTurn 3.18mm 9.53 X 9.53 X 17.88mm Pin Panel Mount/Through Hole
