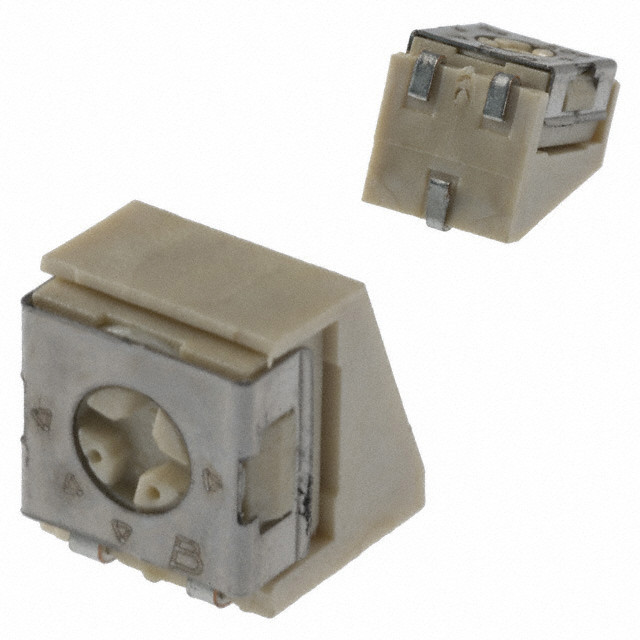

Res Cermet Trimmer 500KΩ 20% 0.25W1/4W 1Elec/1MechTurns 2.41mm 5.01 X 5.56 X 5.76mm J-Hook SMD T/R
Not sure what resistance value you need? No problem, applying this potentiometer from Bourns will allow you to change the resistance in a matter of seconds. This product has a resistance value of 500K Ohm. This dependable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. The 3314Z-1-504E part has a j-hook termination style. It has a tolerance of 20%. This product is 5.01 mm long, 5.76 mm tall and 5.56 mm deep. This device is made with cermet technology. This part has an operating temperature of -55 to 125 °C.
容差 ±20 %
额定功率 0.25 W
电阻 500 kΩ
阻值偏差 ±20 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
封装 Square - 0.219" L x 0.197" W x 0.227" H 5.56mm x 5.01mm x 5.76mm
长度 5.01 mm
宽度 5.56 mm
高度 5.76 mm
封装 Square - 0.219" L x 0.197" W x 0.227" H 5.56mm x 5.01mm x 5.76mm
颜色 Natural
重量 285 mg
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
