3214J-1-502E

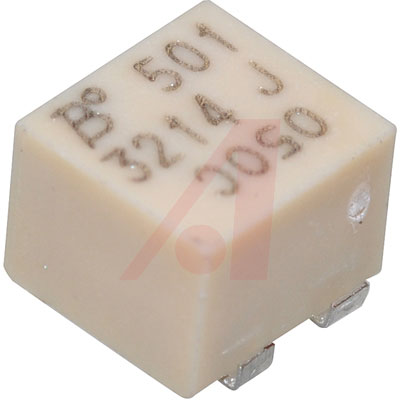

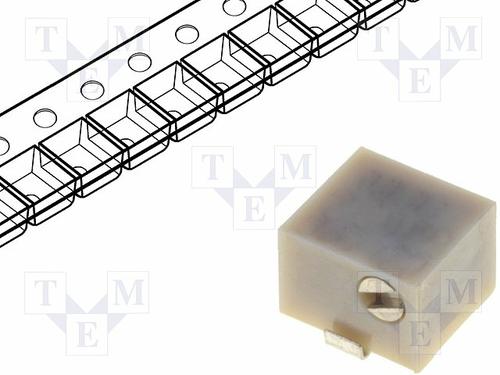

BOURNS  3214J-1-502E  微调电位器, 5KΩ, 10%, 5转, SMD

5 转 250mW 4mm 密封 3214J 系列

Bourns® 3214J 系列 4mm 密封 5 转 Trimpot® 微调电位计

微型（标称尺寸 4mm 的方形箱）

出色的安装效率

适合于流动焊/回流焊/手工焊

直向槽面调节器

符合 EIA 和 EIAJ 的占地面积标准

欧时:
3214J SMD Cermet Trimmer 5K 10% 4mm

艾睿:
Infrequently adjust the resistor value for your circuit with this 3214J-1-502E potentiometer from Bourns. This product has a resistance value of 5K Ohm. This dependable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device utilizes cermet technology. This product is 4.8 mm long, 3.71 mm tall and 5 mm deep. This part has an operating temperature of -65 to 150 °C. It has a tolerance of 10%. The 3214J-1-502E part has a j-hook termination style.

Allied Electronics:
Trimmer, Cermet, 5-Turn, 5K Ohm, 0.25 W, 600 VAC, 10%, Side Adjust

安富利:
Res Cermet Trimmer 5K Ohm 10% 1/4W 5ElecTurn 1.5mm 4.8 X 5 X 3.71mm J-Hook SMD Embossed T/R

Chip1Stop:
Res Cermet Trimmer 5K Ohm 10% 0.25W1/4W 5ElecTurn 1.5mm 4.8 X 5 X 3.71mm J-Hook SMD Embossed T/R

TME:
Potentiometer: mounting; horizontal, multiturn; 5kΩ; 250mW; SMD

Verical:
Res Cermet Trimmer 5K Ohm 10% 0.25W1/4W 5ElecTurns 1.5mm 4.8 X 5 X 3.71mm J-Hook SMD T/R

Newark:
# BOURNS  3214J-1-502E  Trimmer Potentiometer, Multiturn, 5 kohm, 250 mW, ± 10%, 3214J Series, 5 Turns

MASTER:
Res Cermet Trimmer 5K Ohm 10% 0.25W1/4W 5ElecTurns 1.5mm 4.8 X 5 X 3.71mm J-Hook SMD T/R

Electro Sonic:
Res Cermet Trimmer 5K Ohm 10% 0.25W1/4W 5ElecTurns 1.5mm 4.8 X 5 X 3.71mm J-Hook SMD T/R
