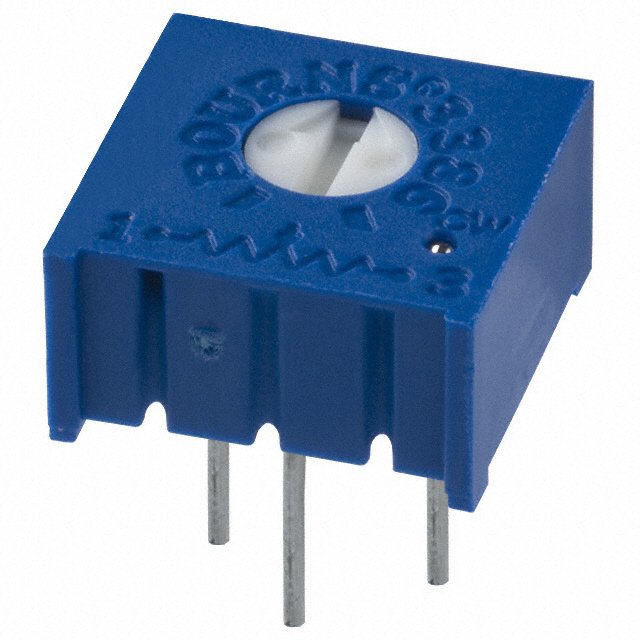

3386P-1-102

Res Cermet Trimmer 1KΩ 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube

1 kOhms 0.5W，1/2W PC 引脚 通孔 微调电位计 金属陶瓷 1.0 匝 顶部调节

得捷:
TRIMMER 1K OHM 0.5W PC PIN TOP

艾睿:
Not sure what resistance value you need? No problem, applying this 3386P-1-102 potentiometer from Bourns will allow you to change the resistance in a matter of seconds. This part has a power rating of 0.5 1/2 W. This product has a resistance value of 1K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a tolerance of 10%. The 3386P-1-102 part has a pin termination style. This device is made with cermet technology. This part has an operating temperature of -55 to 125 °C. This product is 9.53 mm long, 4.83 mm tall and 9.53 mm deep.

安富利:
Res Cermet Trimmer 1K Ohm 10% 1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube

Chip1Stop:
Res Cermet Trimmer 1K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube

Verical:
Res Cermet Trimmer 1K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube

Newark:
# BOURNS  3386P-1-102  Trimmer Potentiometer, Surface Mount, 1 kohm, 500 mW, ± 10%, 3386P Series, 1 Turns, Through Hole

MASTER:
Res Cermet Trimmer 1K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 1K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube

Win Source:
TRIMMER 1K OHM 0.5W PC PIN
