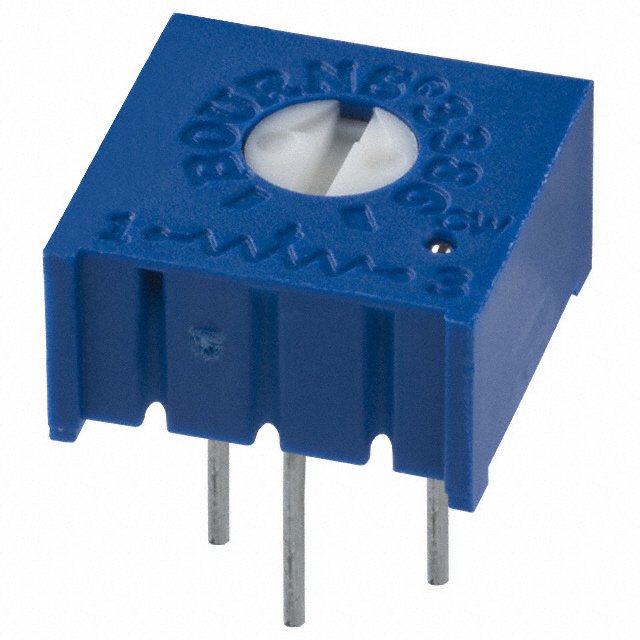

Res Cermet Trimmer 200Ω 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube
Res Cermet Trimmer 200 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube
贸泽:
Trimmer Resistors - Through Hole 3/8IN SQ 200 OHM 10% 0.5WATTS
艾睿:
Res Cermet Trimmer 200 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube
Chip1Stop:
Res Cermet Trimmer 200 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube
Verical:
Res Cermet Trimmer 200 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube
MASTER:
Res Cermet Trimmer 200 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube
Online Components:
Res Cermet Trimmer 200 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 200 Ohm 10% 0.5W1/2W 1Elec/1MechTurn 3.15mm 9.53 X 9.53 X 4.83mm Pin Thru-Hole Tube
容差 ±10 %
额定功率 0.5 W
电阻 200 Ω
阻值偏差 ±10 %
额定电压 300 V
安装方式 Through Hole
封装 Square - 0.375" L x 0.375" W x 0.190" H 9.52mm x 9.52mm x 4.83mm
长度 9.53 mm
宽度 9.53 mm
高度 4.83 mm
封装 Square - 0.375" L x 0.375" W x 0.190" H 9.52mm x 9.52mm x 4.83mm
颜色 Blue
重量 845 mg
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
