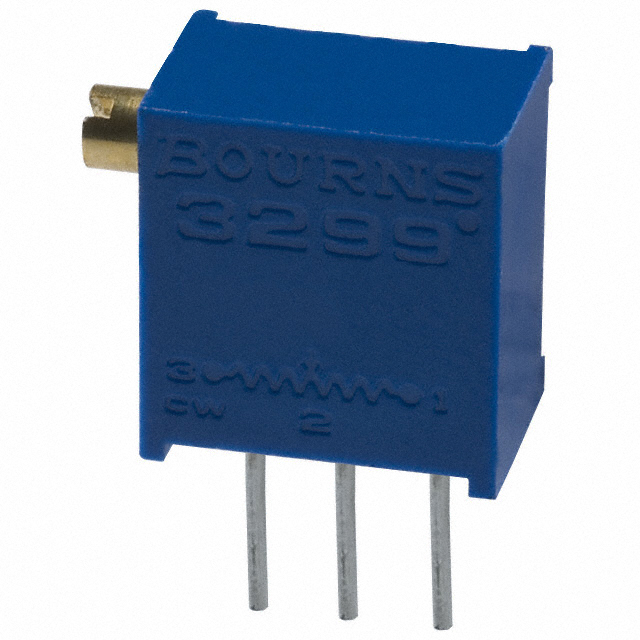

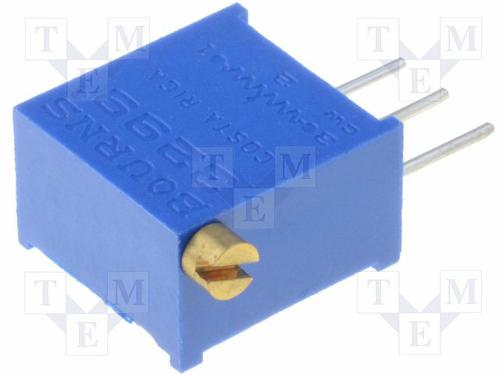

BOURNS 3299X-1-501LF 金属陶瓷电位器, 500欧姆-5欧姆 10% 0.5W 500V
Low noise, high performance 3⁄8" square trimmer. Infinite resolution cermet element. Low temperature coefficient ±100 ppm/°C over entire temperature and resistance range. Sealed to withstand wave soldering and cleaning processes.
得捷:
TRIMMER 500 OHM 0.5W PC PIN SIDE
e络盟:
金属陶瓷电位器, 500欧姆-5欧姆 10% 0.5W 500V
艾睿:
Are you looking for a way to calibrate resistance and optimize your circuit? Then this 3299X-1-501LF potentiometer from Bourns is your solution! This part has a power rating of 0.5 1/2 W. This product has a resistance value of 500 Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a tolerance of 10%. This product is 11.05 mm long, 10.03 mm tall and 6.1 mm deep. The 3299X-1-501LF part has a pin termination style. This part has an operating temperature of -55 to 125 °C. This device is made with cermet technology.
Allied Electronics:
TRIMMER; CERMET; REST 500 OHMS; PCB; 25 TURNS; PWR-RTG 0.5W
Jameco:
Resistor Trimmer 500 Ohm 10% 1/2 Watt 25 Turn 2.29mm Pin Through Hole Tube
安富利:
Res Cermet Trimmer 500 Ohm 10% 1/2W 25ElecTurn 2.29mm 11.05 X 6.1 X 10.03mm Pin Thru-Hole Tube
Chip1Stop:
Res Cermet Trimmer 500 Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 11.05 X 6.1 X 10.03mm Pin Thru-Hole Tube
TME:
Potentiometer: mounting; multiturn; 500Ω; 500mW; THT; ±10%; linear
Verical:
Res Cermet Trimmer 500 Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 11.05 X 6.1 X 10.03mm Pin Thru-Hole Tube
Newark:
# BOURNS 3299X-1-501LF Trimmer Potentiometer, Through Hole, 500 ohm, 500 mW, ± 10%, 3299X Series, 25 Turns, Through Hole
MASTER:
Res Cermet Trimmer 500 Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 11.05 X 6.1 X 10.03mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 500 Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 11.05 X 6.1 X 10.03mm Pin Thru-Hole Tube
额定电压DC 500 V
绝缘电阻 1000 MΩ
容差 ±10 %
额定功率 0.5 W
电阻 500 Ω
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole
封装 Square - 0.395" L x 0.375" W x 0.240" H 10.03mm x 9.53mm x 6.10mm
长度 11.05 mm
宽度 6.1 mm
高度 10.03 mm
封装 Square - 0.395" L x 0.375" W x 0.240" H 10.03mm x 9.53mm x 6.10mm
颜色 Blue
重量 992 mg
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
3299X-1-501LF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
3299X-1-501 伯恩斯 | 完全替代 | 3299X-1-501LF和3299X-1-501的区别 |
3296X-1-501LF 伯恩斯 | 功能相似 | 3299X-1-501LF和3296X-1-501LF的区别 |
T93XA501KT20 威世 | 功能相似 | 3299X-1-501LF和T93XA501KT20的区别 |
