3310P-001-102L

BOURNS  3310P-001-102L.  电位器, 1kΩ, +/-20%, 面板控制

9mm 3310P-001Series Sealed Panel Control

紧凑型封装 - 节省板和面板空间

封闭式设计，可进行电路板冲洗

可安装面板和印刷电路板

塑料衬套和塑料轴

温度 -40 至 +125 °C

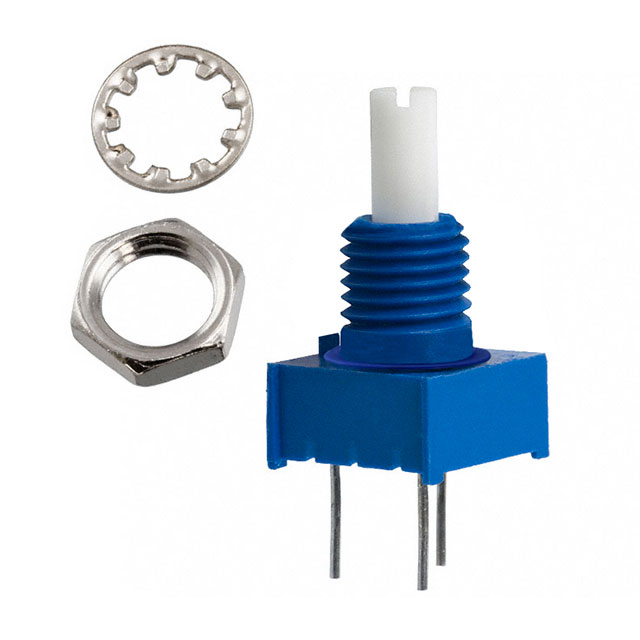

### 随附

Metal lock washer and nut

得捷:
POT 1K OHM 1/4W PLASTIC LINEAR

欧时:
Bourns 3310 系列 1kΩ ±20% 旋转 电位器 3310P-001-102L, 0.25W, 3.18 mm 直径轴, ±1000ppm/°C

艾睿:
Apply this 3310P-001-102L potentiometer from Bourns to infrequently adjust the resistance value for your circuit. This product has a resistance value of 1K Ohm. This durable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±1000 ppm/°C. This part has an operating temperature of -40 to 125 °C. It has a tolerance of 20%. This product is 9.53 mm long, 17.88 mm tall and 9.53 mm deep. This device is made with conductive plastic technology. The 3310P-001-102L part has a pin termination style.

Allied Electronics:
9mm Sq Sealed Panel Control Pot; 1K

安富利:
Res Conductive Plastic POT 1K Ohm 20% 1/4W 1Elec/1MechTurn 3.18mm 9.53 X 9.53 X 17.88mm Pin Panel Mount/Through Hole

Chip1Stop:
Res Conductive Plastic POT 1K Ohm 20% 0.25W1/4W 1Elec/1MechTurn 3.18mm 9.53 X 9.53 X 17.88mm Pin Panel Mount/Through Hole

Newark:
# BOURNS  3310P-001-102L  Rotary Potentiometer, Sealed Panel Control, 3310P Series, 1 kohm, Linear, 1, 250 mW, Through Hole

MASTER:
Res Conductive Plastic POT 1K Ohm 20% 0.25W1/4W 1Elec/1MechTurn 3.18mm 9.53 X 9.53 X 17.88mm Pin Panel Mount/Through Hole

Electro Sonic:
Res Conductive Plastic POT 1K Ohm 20% 0.25W1/4W 1Elec/1MechTurn 3.18mm 9.53 X 9.53 X 17.88mm Pin Panel Mount/Through Hole
