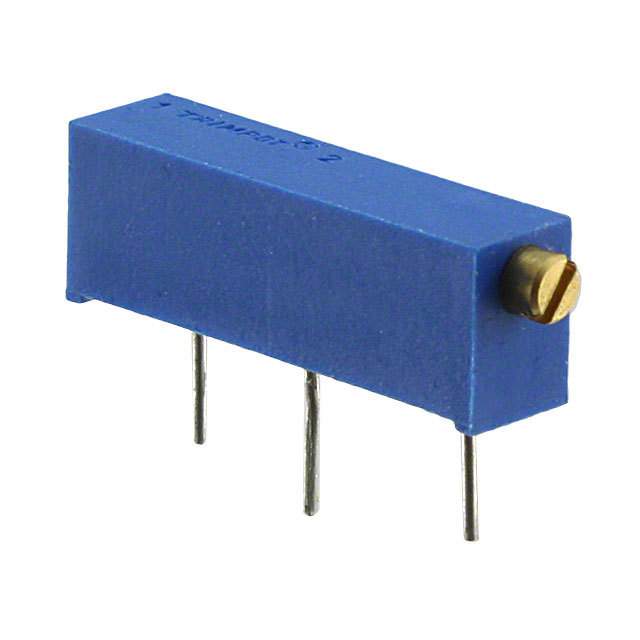

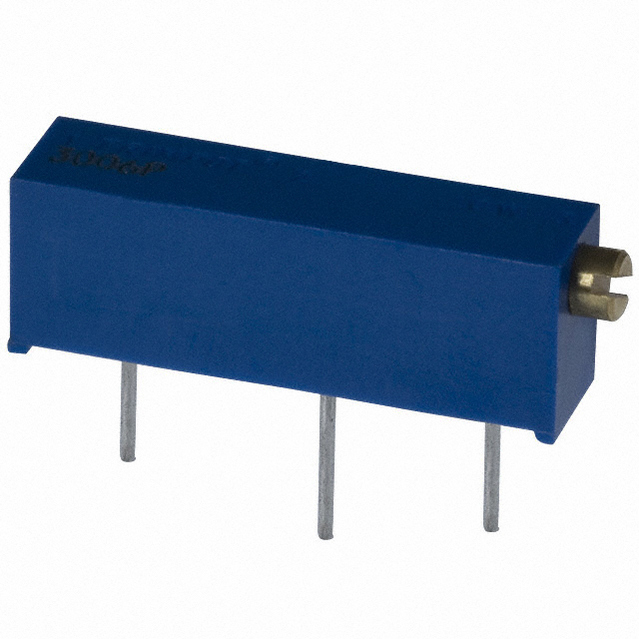

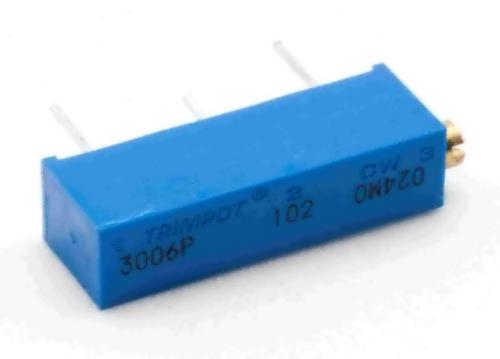

3006 - Trimpot®微调电位器 3006 - Trimpot® Trimming Potentiometer
Calibrate the resistance of a circuit with this potentiometer from Bourns. This product has a resistance value of 1K Ohm. This durable part has a power rating of 0.75 3/4 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a tolerance of 10%. This product is 20.57 mm long, 6.35 mm tall and 4.83 mm deep. This device utilizes cermet technology. This part has an operating temperature of -55 to 125 °C. The 3006P-1-102 part has a pin termination style.
额定电压DC 500 V
容差 ±10 %
额定功率 0.75 W
电阻 1 KΩ
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole
封装 Rectangular - 0.750" L x 0.190" W x 0.250" H 19.05mm x 4.83mm x 6.35mm
长度 20.57 mm
宽度 4.83 mm
高度 6.35 mm
封装 Rectangular - 0.750" L x 0.190" W x 0.250" H 19.05mm x 4.83mm x 6.35mm
厚度 5.59 mm
颜色 Blue
重量 1.13 g
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
3006P-1-102 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
3006P-1-102LF 伯恩斯 | 功能相似 | 3006P-1-102和3006P-1-102LF的区别 |
PV23P102C01B00 村田 | 功能相似 | 3006P-1-102和PV23P102C01B00的区别 |
PV23P102A01B00 村田 | 功能相似 | 3006P-1-102和PV23P102A01B00的区别 |
