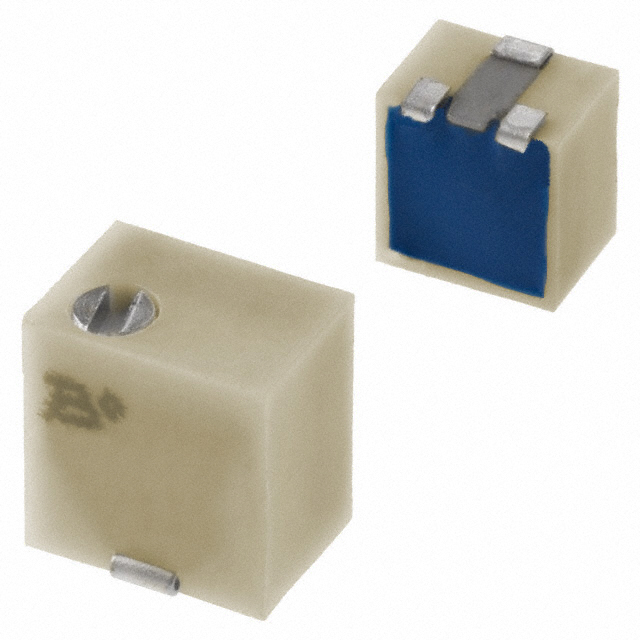

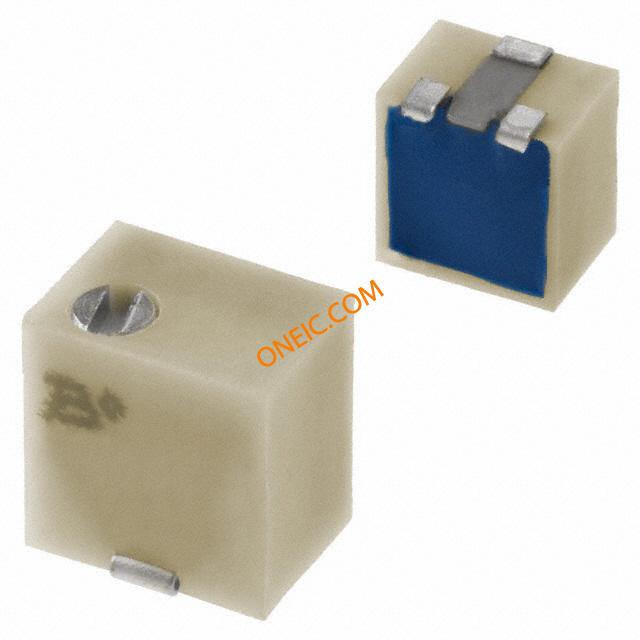

微调电阻器 - 表面贴装 4mm SQ 2M Sealed
4 mm Square 5-turn, cermet, sealed trimmer.- .
- *
Features:
**
* Resistance Tolerance: ±10%
* Power Rating: 0.25 Watt at 85°C
* Dielectric Strength: 600 VAC
* Temperature Range: –65°C to +150°C
* Load Life: 1000 Hours
* Adjustment Tool: H-91
* Sealed to Withstand Board Wash Processing
* Pick and Place Centering Design, with Flush Adjustment

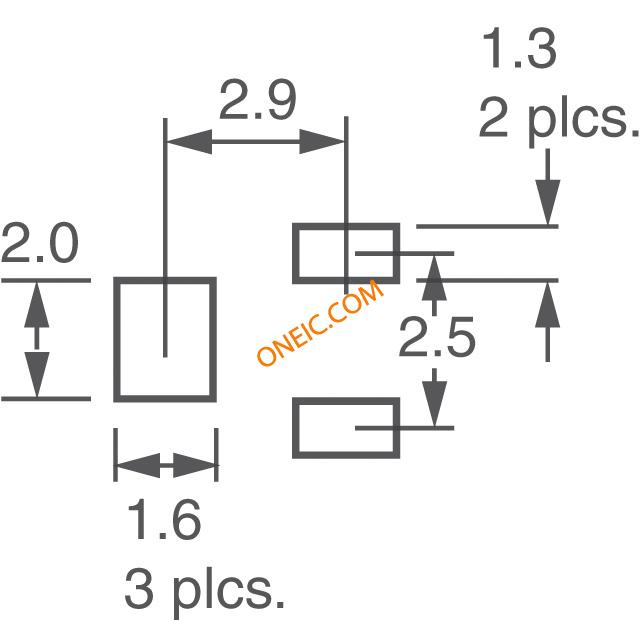

* 4 mm Design Meets EIA/EIAJ/IPC/VECI SMD Standard Trimmer Footprint
* Patent #5047746 Advanced Drive/Wiper Mechanism
容差 10 %
额定功率 0.25 W
电阻 2 MΩ
阻值偏差 ±10 %
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount

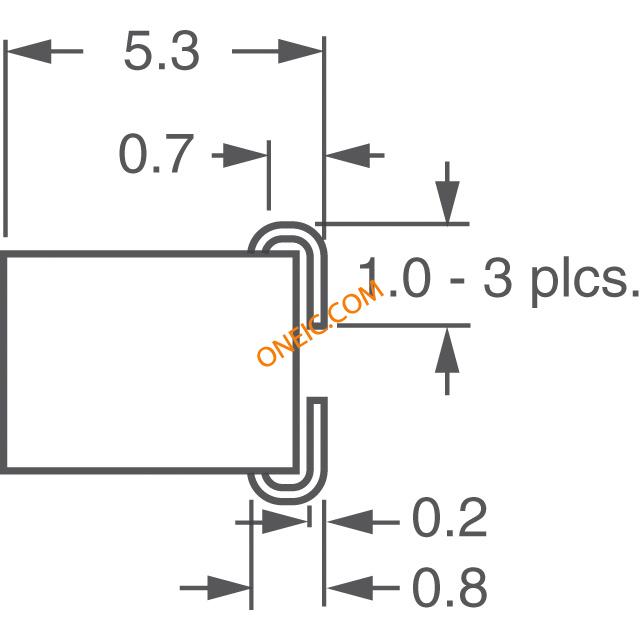

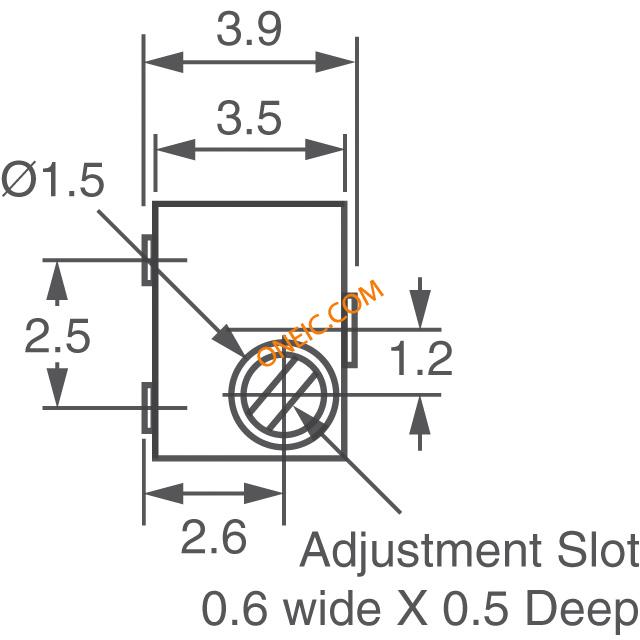

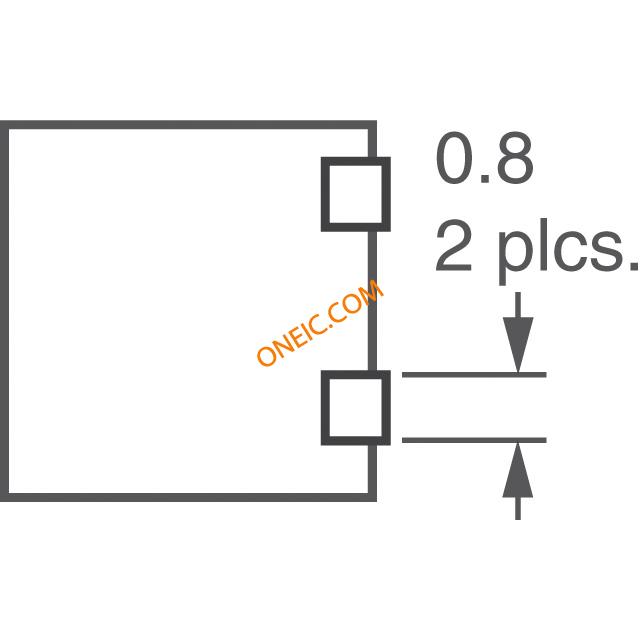

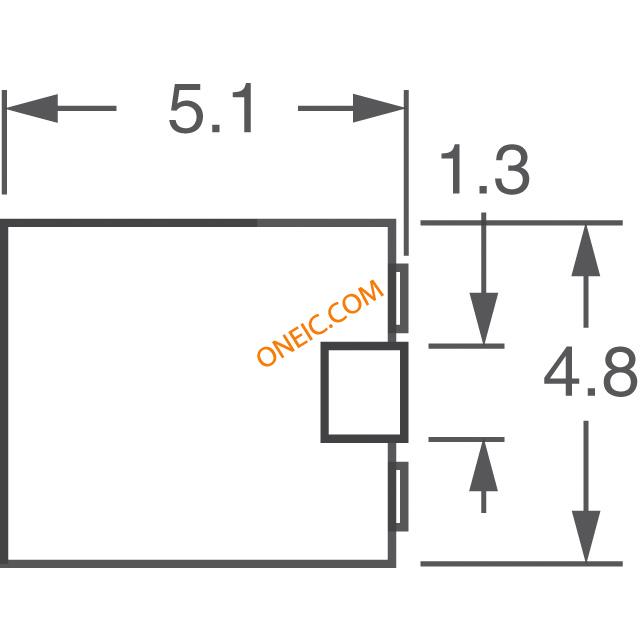

封装 Square - 0.200" L x 0.190" W x 0.200" H 5.10mm x 4.80mm x 5.10mm
长度 4.8 mm
宽度 3.9 mm
高度 5.3 mm
封装 Square - 0.200" L x 0.190" W x 0.200" H 5.10mm x 4.80mm x 5.10mm
工作温度 -65℃ ~ 150℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
