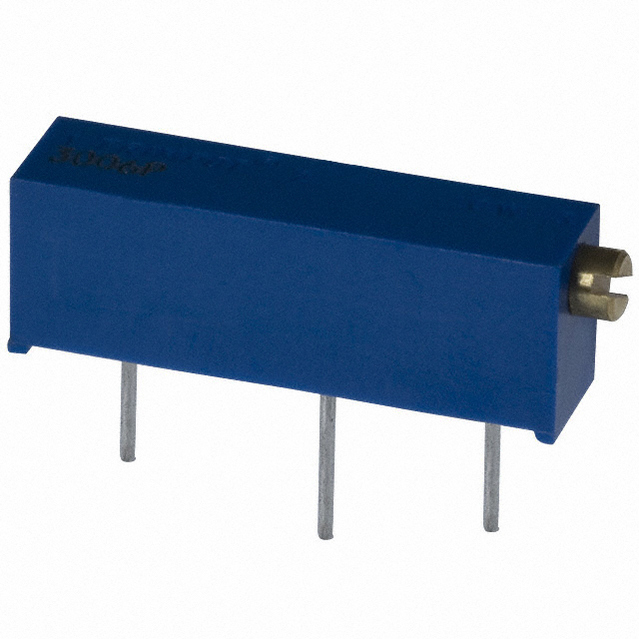

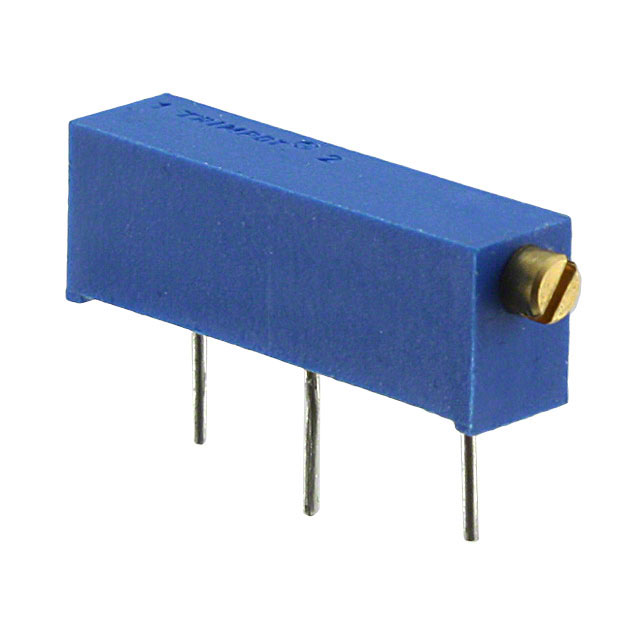

Res Cermet Trimmer 1M Ohm 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube
0.75W,3/4W PC 引脚 通孔 微调电位计 金属陶瓷 匝 侧面调节
艾睿:
Apply this 3006P-1-105 potentiometer from Bourns to infrequently adjust the resistance value for your circuit. This product has a resistance value of 1M Ohm. This dependable part has a power rating of 0.75 3/4 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 10%. This product is 20.57 mm long, 6.35 mm tall and 4.83 mm deep. The 3006P-1-105 part has a pin termination style. This device utilizes cermet technology.
Chip1Stop:
Res Cermet Trimmer 1M Ohm 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube
Verical:
Res Cermet Trimmer 1M Ohm 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube
Newark:
# BOURNS 3006P-1-105 Trimmer Potentiometer, Multiturn, 1 Mohm, 750 mW, ± 10%, 3006P Series, 15 Turns, Through Hole
MASTER:
Res Cermet Trimmer 1M Ohm 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 1M Ohm 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube
额定电压DC 500 V
容差 ±10 %
额定功率 0.75 W
电阻 1 MΩ
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole
封装 Rectangular - 0.750" L x 0.190" W x 0.250" H 19.05mm x 4.83mm x 6.35mm
长度 20.57 mm
宽度 4.83 mm
高度 6.35 mm
封装 Rectangular - 0.750" L x 0.190" W x 0.250" H 19.05mm x 4.83mm x 6.35mm
厚度 5.59 mm
颜色 Blue
重量 1.13 g
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2016/06/20
