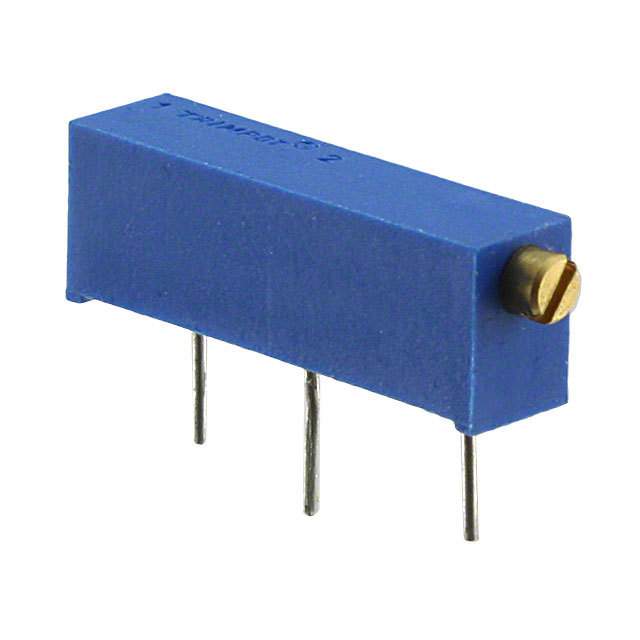

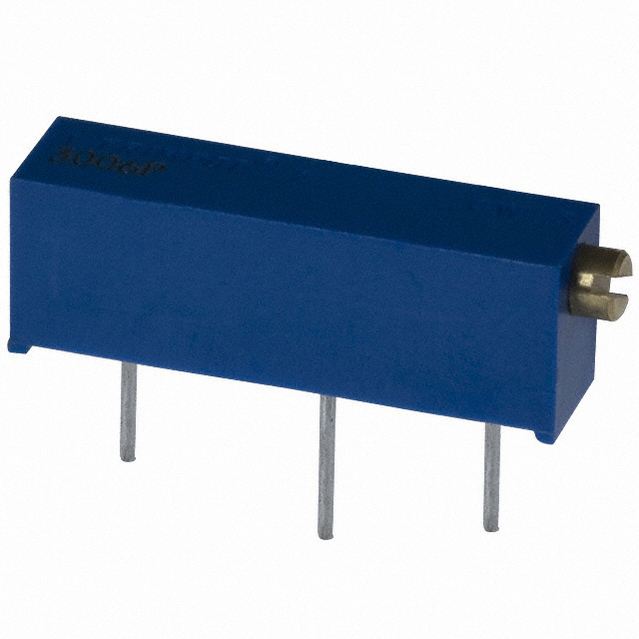

Res Cermet Trimmer 10KΩ 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube
0.75W，3/4W PC 引脚 通孔 微调电位计 金属陶瓷 匝 侧面调节
得捷:
TRIMMER 10KOHM 0.75W PC PIN SIDE
贸泽:
Trimmer Resistors - Through Hole 10K 3/4" 10% Sealed Multi Turn
艾睿:
Res Cermet Trimmer 10K Ohm 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube
安富利:
Res Cermet Trimmer 10K Ohm 10% 3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube
Chip1Stop:
Res Cermet Trimmer 10K Ohm 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube
Verical:
Res Cermet Trimmer 10K Ohm 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube
Newark:
# BOURNS 3006P-1-103 Trimmer, Multiturn, 10 kohm, 750 mW, ± 10%, 3006P Series, 15 Turns, Through Hole
MASTER:
Res Cermet Trimmer 10K Ohm 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 10K Ohm 10% 0.75W3/4W 15ElecTurn 2.36mm 20.57 X 4.83 X 6.35mm Pin Thru-Hole Tube
额定电压DC 500 V
容差 ±10 %
额定功率 0.75 W
电阻 10 kΩ
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole
封装 Rectangular - 0.750" L x 0.190" W x 0.250" H 19.05mm x 4.83mm x 6.35mm
长度 20.57 mm
宽度 4.83 mm
高度 6.35 mm
封装 Rectangular - 0.750" L x 0.190" W x 0.250" H 19.05mm x 4.83mm x 6.35mm
厚度 5.59 mm
颜色 Blue
重量 1.13 g
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2016/06/20
