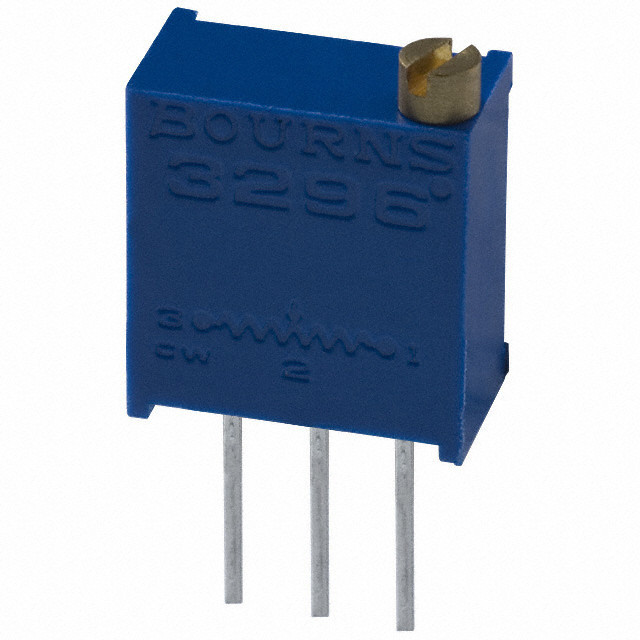

3296W-1-502RLF

3296 - 3/8“广场微调电位器 - 商Bourns 3296 - 3/8 ” Square Trimming Potentiometer - Bourns

5 kOhms 0.5W，1/2W PC 引脚 通孔 微调电位计 金属陶瓷 25.0 匝 顶部调节

得捷:
TRIMMER 5K OHM 0.5W PC PIN TOP

艾睿:
Place this 3296W-1-502RLF potentiometer from Bourns at critical points in a circuit and adjust the resistance for optimal functionality. This product has a resistance value of 5K Ohm. This dependable part has a power rating of 0.5 1/2 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device is made with cermet technology. This product is 9.53 mm long, 11.55 mm tall and 4.83 mm deep. The 3296W-1-502RLF part has a pin termination style. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 10%.

安富利:
Res Cermet Trimmer 5K Ohm 10% 1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole T/R

Chip1Stop:
Res Cermet Trimmer 5K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole T/R

Verical:
Res Cermet Trimmer 5K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole T/R

MASTER:
Res Cermet Trimmer 5K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole T/R

Electro Sonic:
Res Cermet Trimmer 5K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole T/R
