Res Cermet Trimmer 50KΩ 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube
Features
■ Multiturn / Cermet / Industrial / Sealed
■ 5 terminal styles
■ Tape and reel packaging available
■ Chevron seal design
■ Listed on the QPLfor style RJ24 per MIL-R-22097 and RJR24 per High-Rel Mil-R-39035
■ Mounting hardware available H-117P
■ RoHS compliant version available
■ For trimmer applications/processing guidelines, click here
艾睿:

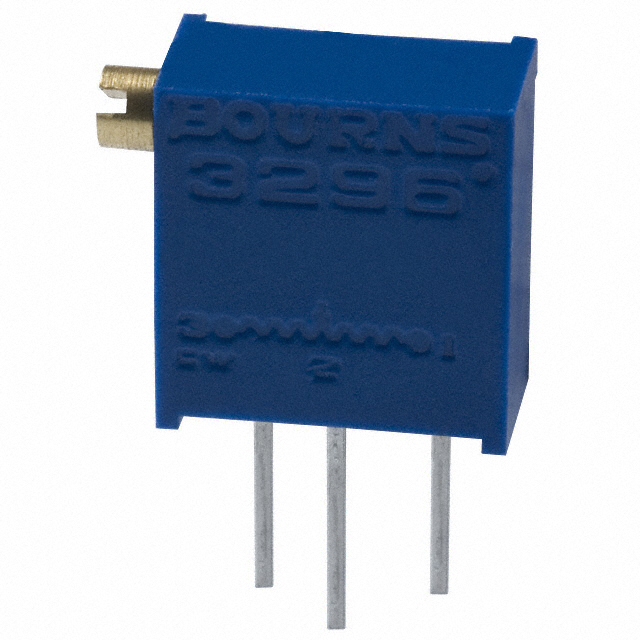

Infrequently adjust the resistor value for your circuit with this 3296Z-1-503 potentiometer from Bourns. This product has a resistance value of 50K Ohm. This part has a power rating of 0.5 1/2 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 11.05 mm long, 10.03 mm tall and 4.83 mm deep. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 10%. This device is made with cermet technology. The 3296Z-1-503 part has a pin termination style.
安富利:
Res Cermet Trimmer 50K Ohm 10% 1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube
Chip1Stop:
Res Cermet Trimmer 50K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube
Verical:
Res Cermet Trimmer 50K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube
MASTER:
Res Cermet Trimmer 50K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube
Online Components:
Res Cermet Trimmer 50K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 50K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube
