3269W-1-105GLF

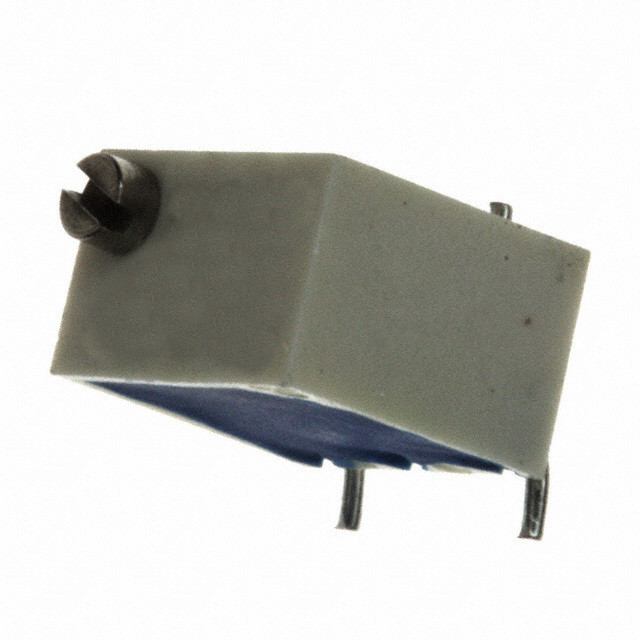

3269W-1-105GLF图片1
3269W-1-105GLF图片2
3269W-1-105GLF图片3
3269W-1-105GLF图片4
3269W-1-105GLF图片5
3269W-1-105GLF图片6
3269W-1-105GLF图片7
3269W-1-105GLF概述

Res Cermet Trimmer 1M Ohm 10% 0.25W1/4W 12ElecTurns 1.78mm 6.35 X 6.36 X 8.46mm Gull Wing SMD T/R

1 MOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 12 Turn Top Adjustment


艾睿:
Optimize functionality in your circuit by placing this 3269W-1-105GLF potentiometer from Bourns at critical points. This dependable part has a power rating of 0.25 1/4 W. This product has a resistance value of 1M Ohm. Its temperature coefficient is ±100 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. The 3269W-1-105GLF part has a gull wing termination style. This product is 6.35 mm long, 8.46 mm tall and 6.36 mm deep. It has a tolerance of 10%. This device utilizes cermet technology. This part has an operating temperature of -65 to 150 °C.


Verical:
Res Cermet Trimmer 1M Ohm 10% 0.25W1/4W 12ElecTurns 1.78mm 6.35 X 6.36 X 8.46mm Gull Wing SMD T/R


MASTER:
Res Cermet Trimmer 1M Ohm 10% 0.25W1/4W 12ElecTurns 1.78mm 6.35 X 6.36 X 8.46mm Gull Wing SMD T/R


Electro Sonic:
Res Cermet Trimmer 1M Ohm 10% 0.25W1/4W 12ElecTurns 1.78mm 6.35 X 6.36 X 8.46mm Gull Wing SMD T/R


3269W-1-105GLF中文资料参数规格
技术参数

容差 ±10 %

额定功率 0.25 W

电阻 1 MΩ

工作温度Max 150 ℃

工作温度Min -65 ℃

封装参数

安装方式 Surface Mount

外形尺寸

长度 6.35 mm

宽度 4.8 mm

高度 8.46 mm

物理参数

工作温度 65℃ ~ 150℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买3269W-1-105GLF
型号: 3269W-1-105GLF
制造商: Bourns J.W. Miller 伯恩斯
描述:Res Cermet Trimmer 1M Ohm 10% 0.25W1/4W 12ElecTurns 1.78mm 6.35 X 6.36 X 8.46mm Gull Wing SMD T/R
