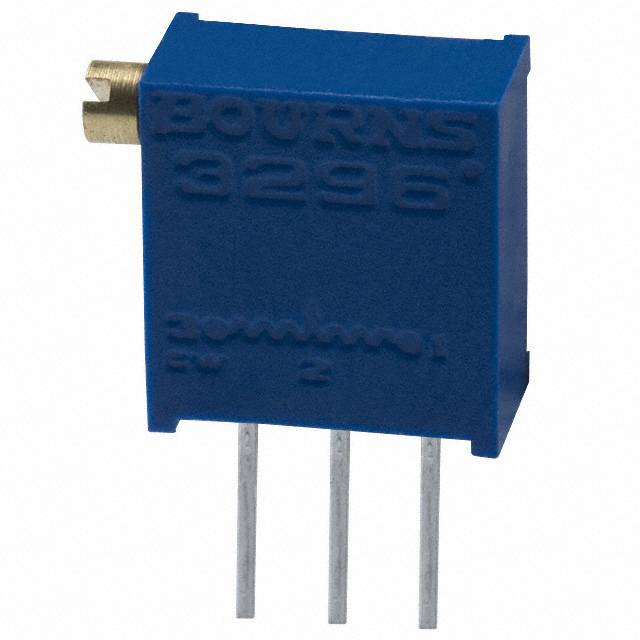

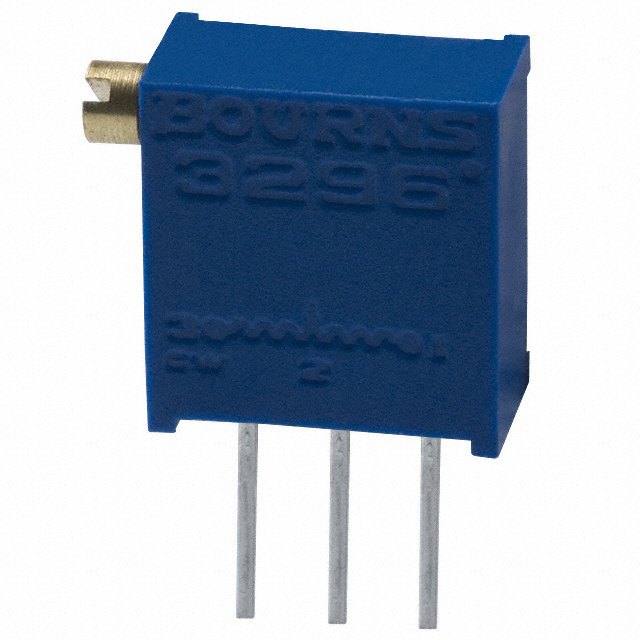

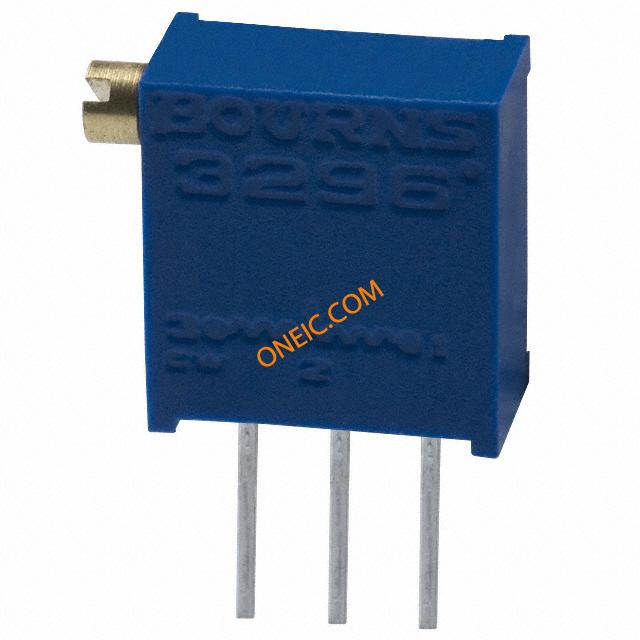

BOURNS 3296X-1-103 Trimmer Potentiometer, Through Hole, 10KΩ, 0.5W1/2W, ± 10%, 3296X Series, 25 Turns, Through Hole
10 kOhms 0.5W，1/2W PC 引脚 通孔 微调电位计 金属陶瓷 25.0 匝 侧面调节
得捷:
TRIMMER 10K OHM 0.5W PC PIN SIDE
艾睿:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube
Chip1Stop:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube
Verical:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube
Newark:
# BOURNS 3296X-1-103 Trimmer Potentiometer, Through Hole, 10 kohm, 500 mW, ± 10%, 3296X Series, 25 Turns, Through Hole
MASTER:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube
额定电压DC 500 V
容差 ±10 %
额定功率 0.5 W
电阻 10 kΩ
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole
封装 Square - 0.375" L x 0.190" W x 0.395" H 9.53mm x 4.83mm x 10.03mm
长度 11.05 mm
宽度 4.83 mm
高度 10.03 mm
封装 Square - 0.375" L x 0.190" W x 0.395" H 9.53mm x 4.83mm x 10.03mm
厚度 5.59 mm
颜色 Blue
重量 850 mg
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533408050
