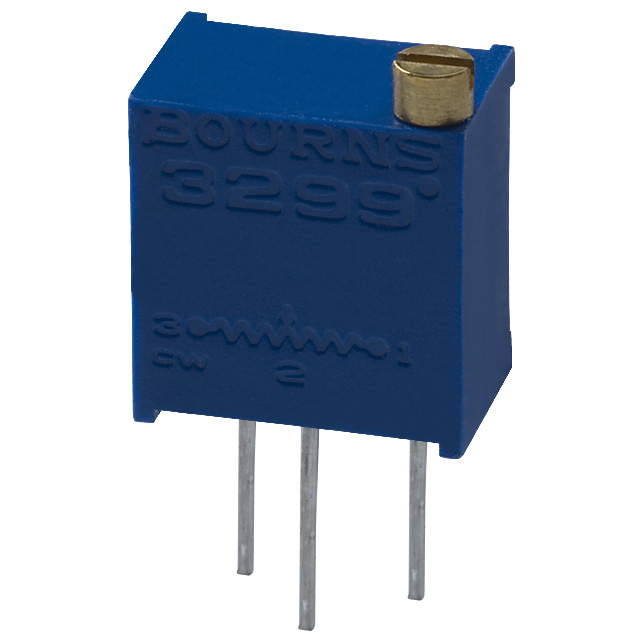

3299Y-1-100LF

3/8广场微调电位器 3/8 Square Trimming Potentiometer

10 Ohms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25 Turn Top Adjustment

贸泽:
Trimmer Resistors - Through Hole 10 OHMS Standoffs Vertical Adjust 3/8"

艾睿:
Calibrate the resistance of a circuit with this 3299Y-1-100LF potentiometer from Bourns. This product has a resistance value of 10 Ohm. This durable part has a power rating of 0.5 1/2 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a tolerance of 10%. This part has an operating temperature of -55 to 125 °C. This device utilizes cermet technology. The 3299Y-1-100LF part has a pin termination style. This product is 9.53 mm long, 11.55 mm tall and 6.1 mm deep.

Chip1Stop:
Res Cermet Trimmer 10 Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube

Verical:
Res Cermet Trimmer 10 Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube

MASTER:
Res Cermet Trimmer 10 Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 10 Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube
