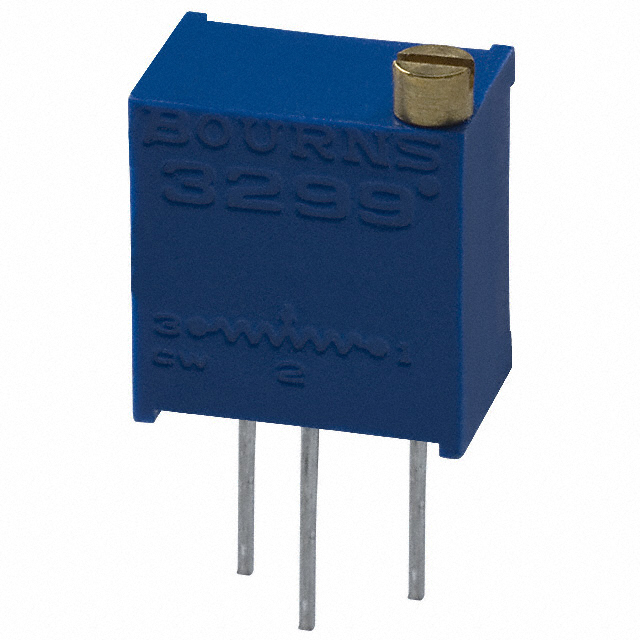

3299Y-1-253LF

3/8广场微调电位器 3/8 Square Trimming Potentiometer

Low noise, high performance 3⁄8" square trimmer. Infinite resolution cermet element. Low temperature coefficient ±100 ppm/°C over entire temperature and resistance range. Sealed to withstand wave soldering and cleaning processes.

得捷:
TRIMMER 25K OHM 0.5W PC PIN TOP

贸泽:
Trimmer Resistors - Through Hole 25Kohms Standoffs Vertical Adjust 3/8"

艾睿:
Are you looking for a way to calibrate resistance and optimize your circuit? Then this 3299Y-1-253LF potentiometer from Bourns is your solution! This durable part has a power rating of 0.5 1/2 W. This product has a resistance value of 25K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The 3299Y-1-253LF part has a pin termination style. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 10%. This product is 9.53 mm long, 11.55 mm tall and 6.1 mm deep. This device is made with cermet technology.

Allied Electronics:
Trimmer; 25K Ohm; 0.5W; Thru-Hole

Verical:
Res Cermet Trimmer 25K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube

Newark:
# BOURNS  3299Y-1-253LF  Trimmer Potentiometer, Through Hole, 25 kohm, 500 mW, ± 10%, 3299Y Series, 25 Turns, Through Hole

MASTER:
Res Cermet Trimmer 25K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 25K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube
