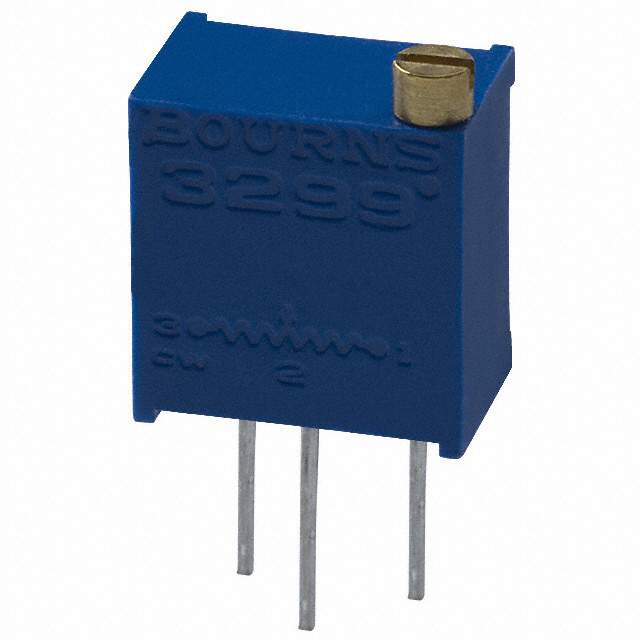

BOURNS 3299Y-1-254LF 微调电位器, 250KΩ, 25转, 10%, 通孔安装
Infrequently adjust the resistor value for your circuit with this potentiometer from Bourns. This durable part has a power rating of 0.5 1/2 W. This product has a resistance value of 250K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 10%. This product is 9.53 mm long, 11.55 mm tall and 6.1 mm deep. This device utilizes cermet technology. The 3299Y-1-254LF part has a pin termination style.
容差 ±10 %
额定功率 0.5 W
电阻 250 kΩ
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 300 V
安装方式 Through Hole
封装 Square - 0.395" L x 0.375" W x 0.240" H 10.03mm x 9.53mm x 6.10mm
长度 9.53 mm
宽度 6.1 mm
高度 11.55 mm
封装 Square - 0.395" L x 0.375" W x 0.240" H 10.03mm x 9.53mm x 6.10mm
颜色 Blue
重量 992 mg
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
