3224X-1-502E

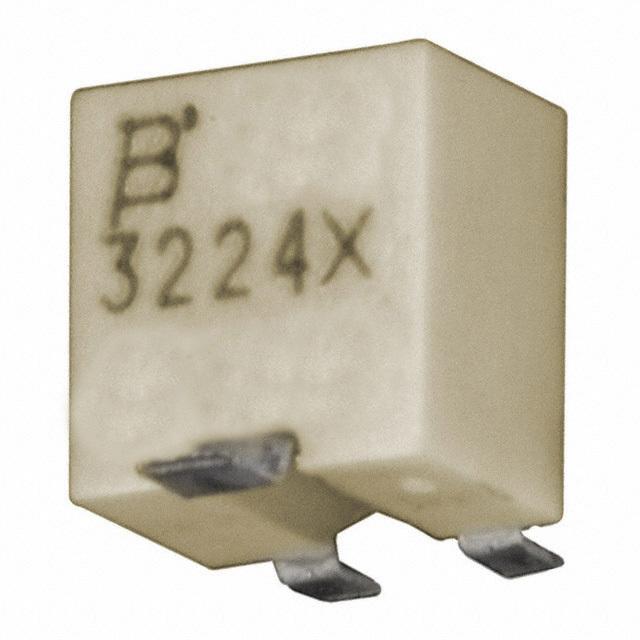

BOURNS  3224X-1-502E  微调电位器, 5KΩ, 10%, 12转, SMD

12 转 250mW 4mm 3224X 系列顶部调整

Bourns 标准 3224X 系列顶部调整 SMD Trimpot® 微调电位计，额定功率 @ 70 °C 0.25W。3224X 系列金属陶瓷微调电容器带嵌入式调整螺钉，具有拾放定心设计用于自动化放置兼容性且封闭式设计，可进行标准板冲洗处理。

微型（标称尺寸 4mm 的方形箱）

出色的安装效率

适合于流动焊/回流焊/手工焊

符合 EIA 和 EIAJ 的占地面积标准

低 CRV - 1%

### 多转贴片电容器

欧时:
Bourns 322X 系列 12 转 表面贴装 微调电阻器 3224X-1-502E, 带鸥翼型接端, 5kΩ ±10%, 0.25W, ±100ppm/°C

立创商城:
3224X-1-502E

艾睿:
Calibrate the resistance of a circuit with this 3224X-1-502E potentiometer from Bourns. This product has a resistance value of 5K Ohm. This dependable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 4.8 mm long, 5.3 mm tall and 5.7 mm deep. The 3224X-1-502E part has a gull wing termination style. This device utilizes cermet technology. It has a tolerance of 10%. This part has an operating temperature of -65 to 150 °C.

Allied Electronics:
Trimmer; Cermet; Rest 5 Kilohms; SMT; 11 Turn; Pwr-Rtg 0.25W, Top Adjust

安富利:
Res Cermet Trimmer 5K Ohm 10% 1/4W 12ElecTurn 1.5mm 4.8 X 5.7 X 5.3mm Gull Wing SMD Embossed T/R

Chip1Stop:
Res Cermet Trimmer 5K Ohm 10% 0.25W1/4W 12ElecTurns 1.5mm 4.8 X 5.7 X 5.3mm Gull Wing SMD T/R

Verical:
Res Cermet Trimmer 5K Ohm 10% 0.25W1/4W 12ElecTurns 1.5mm 4.8 X 5.7 X 5.3mm Gull Wing SMD T/R

Newark:
# BOURNS  3224X-1-502E  Trimmer Potentiometer, Multiturn, 5 kohm, 250 mW, ± 10%, Trimpot 3224 Series, 11 Turns

MASTER:
Res Cermet Trimmer 5K Ohm 10% 0.25W1/4W 12ElecTurns 1.5mm 4.8 X 5.7 X 5.3mm Gull Wing SMD T/R

Electro Sonic:
Trimmer Potentiometer - 5K Ohm - 0.25W1/4W - 12ElecTurns - 4.8 X 5.7 X 5.3mm - Gull Wing - Surface ...
