3329X-1-103LF

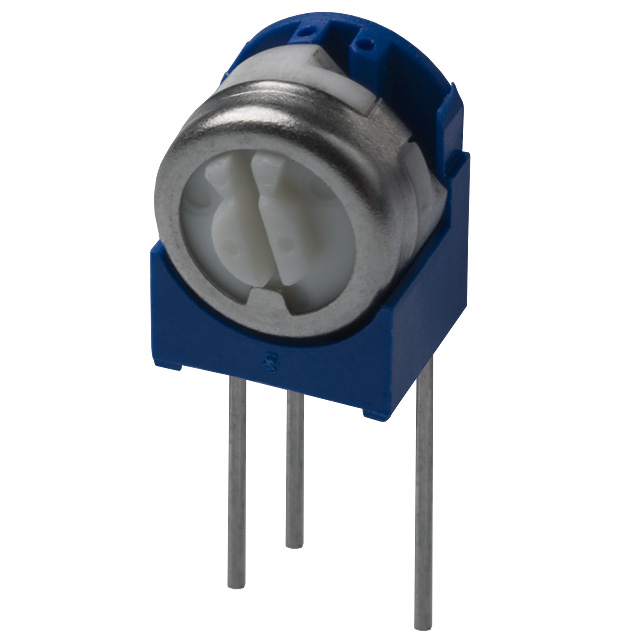

BOURNS  3329X-1-103LF  微調电位器, 10KΩ, 10%

10 kOhms 0.5W，1/2W PC 引脚 通孔 微调电位计 金属陶瓷 1.0 匝 侧面调节

艾睿:

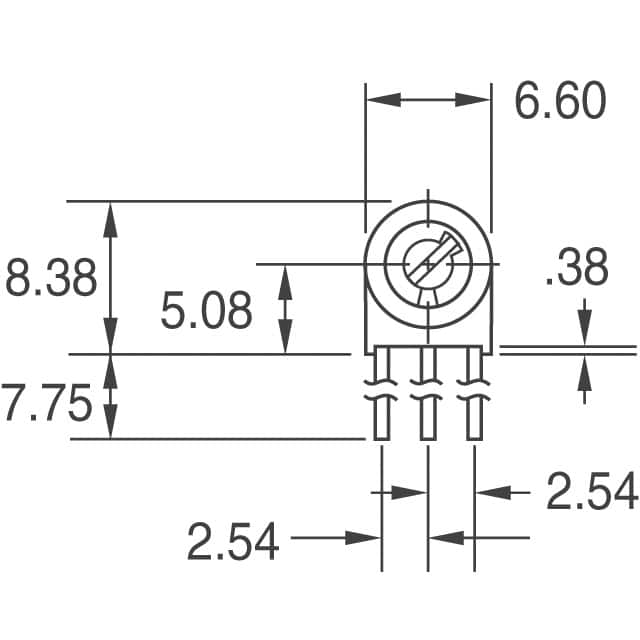

This 3329X-1-103LF potentiometer from Bourns is designed to optimize functionality and calibrate the resistance in your circuit. This part has a power rating of 0.5 1/2 W. This product has a resistance value of 10K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a tolerance of 10%. The 3329X-1-103LF part has a pin termination style. This device utilizes cermet technology. This product is 6.6 mm long, 8.38 mm tall and 6.1 mm deep. This part has an operating temperature of -55 to 150 °C.

安富利:
Res Cermet Trimmer 10K Ohm 10% 1/2W 1Elec/1MechTurn 6.6 X 6.1 X 8.38mm Pin Thru-Hole Tube

Chip1Stop:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 1Elec/1MechTurn 6.6 X 6.1 X 8.38mm Pin Thru-Hole Tube

Verical:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 1Elec/1MechTurns 6.6 X 6.1 X 8.38mm Pin Thru-Hole Tube

Newark:
# BOURNS  3329X-1-103LF  Trimmer Potentiometer, Surface Mount, 10 kohm, 500 mW, ± 10%, 3329X Series, 1 Turns, Through Hole

MASTER:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 1Elec/1MechTurns 6.6 X 6.1 X 8.38mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 1Elec/1MechTurns 6.6 X 6.1 X 8.38mm Pin Thru-Hole Tube
